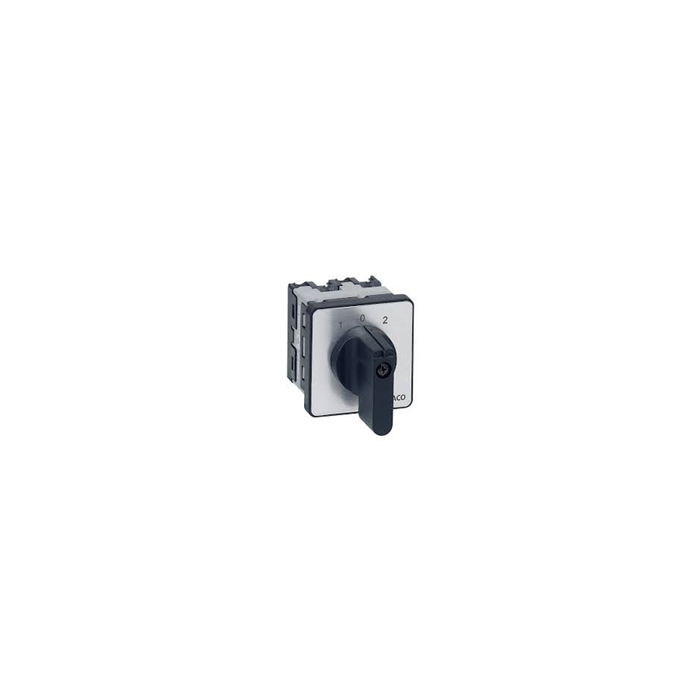

3 POLES 32A I-O-II C/O CAM SWITCH
The PR ONE cam switch line:
Key characteristics:
- 45-degree switchover angle.
- Compelled to make contact.
- Reaches 690V in order to meet load break specifications.
- Turn-on switches (that have an OFF position).
- IP40 front protection and IP20 back terminal (protection for fingers).
Specifications:
- SERIES: PR ONE.
- CONTACT RATING AC-21: 32A.
- CONTACT RATING AC-23: 11 KW.
- NUMBER OF POLES: 3 poles.
- DESCRIPTION: Changeover rotary cam switch.
- ACTION: (I-O-II).
- OPERATING TEMPERATURE: -20°C to 70°C.
- FRONT BEZEL: 48 mm - engraved aluminium plate with black handle.
- STANDARDS OF COMFORMITY: IEC EN 60947-1, 60947-3, UL508, UL-CSA.
| Brand | BACO |
|---|
