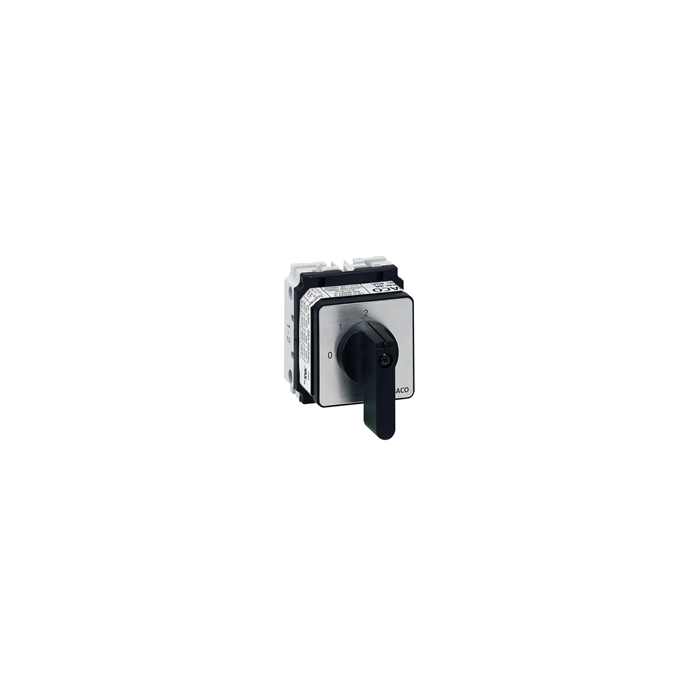

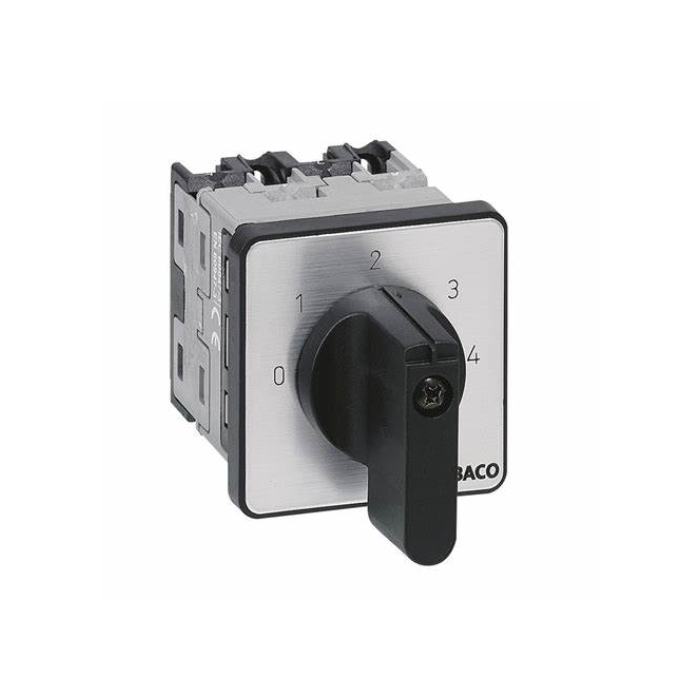

3 POLES 32A O-I-II 6 CONTACT SWITCH

ZAR 1,397.85
Out of stock
SKU
227632

Series of PR-ONE cam switches:

Key details:

  • 45-degree angle switch-over.
  • Two-way switches have the option to be turned off.
  • Contacts that were forced to open.
  • Meets the criteria for load breaks up to 690V.
  • Finger protection at the IP20 rear terminal and front protection at IP40.

Specifications:

  • SERIES: PR ONE.
  • CONTACT RATING AC-21: 32A.
  • CONTACT RATING AC-23: 11 KW.
  • NUMBER OF POLES: 3 poles.
  • DESCRIPTION: 2-way rotary cam switch.
  • ACTION: (O-I-II).
  • OPERATING TEMPERATURE: -20°C to 70°C.
  • FRONT BEZEL: 48 mm - engraved aluminium plate with black handle.
  • STANDARDS OF COMFORMITY: IEC EN 60947-1, 60947-3, UL508, UL-CSA.
More Information
Brand BACO
