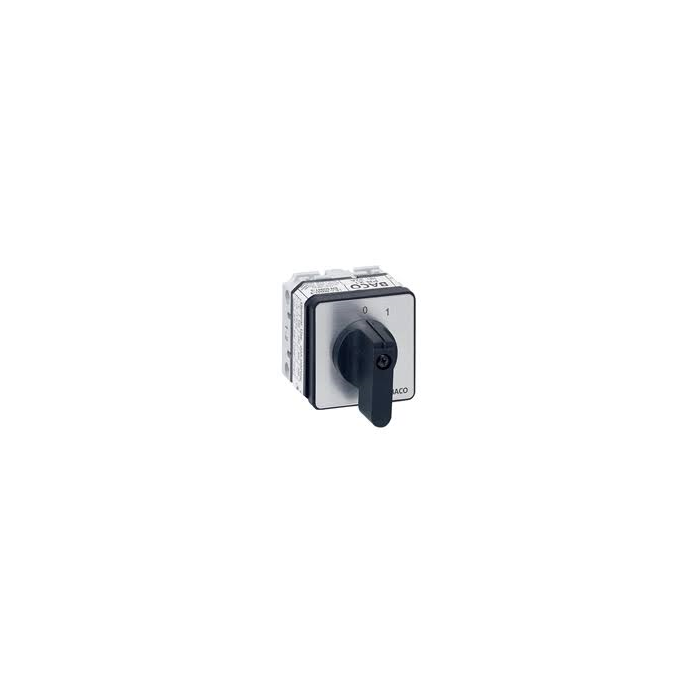

3 POLES 32A ON-OFF CAM SWITCH
The cam switch line of PR ONE:
Key features:
- Toggles for ON and OFF.
- The switch is angled at 45 degrees.
- Forced the opening of communication.
- Conforms to 690V load break specifications.
- IP40 front protection, IP20 rear terminal (finger protection).
Specifications:
- SERIES: PR ONE.
- CONTACT RATING AC-21: 32A.
- CONTACT RATING AC-23: 11 KW.
- NUMBER OF POLES: 3 poles.
- DESCRIPTION: On-Off rotary cam switch.
- ACTION: (O-I).
- OPERATING TEMPERATURE: -20°C to 70°C.
- FRONT BEZEL: 48 mm - engraved aluminium plate with black handle.
- STANDARDS OF COMFORMITY: IEC EN 60947-1, 60947-3, UL508, UL-CSA.
| Brand | BACO |
|---|
