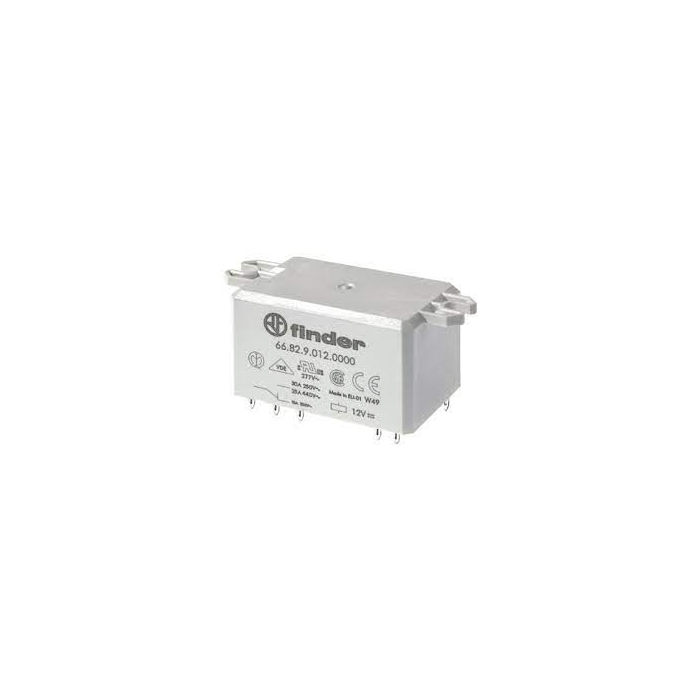

30A 2 CHANGEOVER 66 SERIES HIGH POWER RELAY 12VDC
High power 2 pole relays in 66 series:
- Voltages of AC and DC coils.
- Fasten 250 termination (6.3 x 0.8 mm).
- 8 mm, 6 kV (1.2/50 ¼) coil-contacts, isolation.
- Two-pole switch contacts 10A NC - 30A NO to EN60335-1, reinforced insulation between coil and connections.
SERIES 66:
- CURRENT: 30A
- DESCRIPTION: Plug-in industrial power relay
- CONTACT CONFIGURATION: 2 changeovers.
- COIL VOLTAGE: 12 VDC
- DIMENSIONS (MM): 31 x 51.5 x 33.5
| Brand | Finder |
|---|
