30kW 3-Ph 380VAC Heavy Duty DBU RS-485 (Optional Closed-Loop Vector & Comms Options)

ZAR 49,227.00
Out of stock
SKU
SV0300IS7-4NO

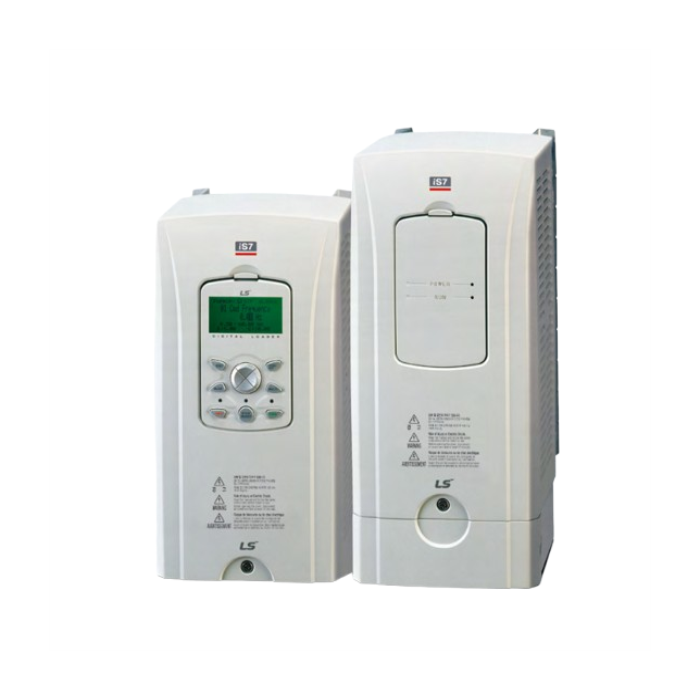

iS7 Series

  • With its improved V/F control, V/F PG slip compensation, and sensor-less vector control, the iS7 produces more powerful performance.
  • The iS7 places a strong emphasis on its user-friendly interface and environmentally friendly features, which include support for macro groups and wide graphic LCD keypad users, as well as electro-thermal motor protection and input/output phase loss protection.
  • A speed-precision-driven vector algorithm and competitive and effective low-speed torque control are features of iS7 technology.
  • Range of speed control: 100:1.
  • Very low torque control capability: actual torque of 150% at 0.1 Hz.
  • Maximum torque is controllable within the range of restoration.

Specifications:

  • Supply voltage: 3 Phase 380VAC.
  • Output Type: Analogue DC 0~10V.
  • Output Type: Analogue DC 4~20mA.
  • Output Type: Digital Programmable Relay (NO)
  • Output Type: Digital Programmable Relay (NO/NC)
  • Output Type: Digital Programmable Transistor
  • Other Feature: Thermistor Input
  • Display Type: LCD
  • Input Type: 8 Pieces Prog. PNP/NPN
  • Input Type: Analogue DC ±10V.
  • Input Type: Analogue DC 4~20mA /0~20mA.
  • Strength: 30 kW
  • Input Phase: 3
  • Amps (Constant Torque Rating): 61 A
  • Amps (Variable Torque Rating): 75 A
  • Mounting: DIN rail mounting
  • Input Range Voltage (AC): 380-480 VAC
More Information
Brand LS Electric
