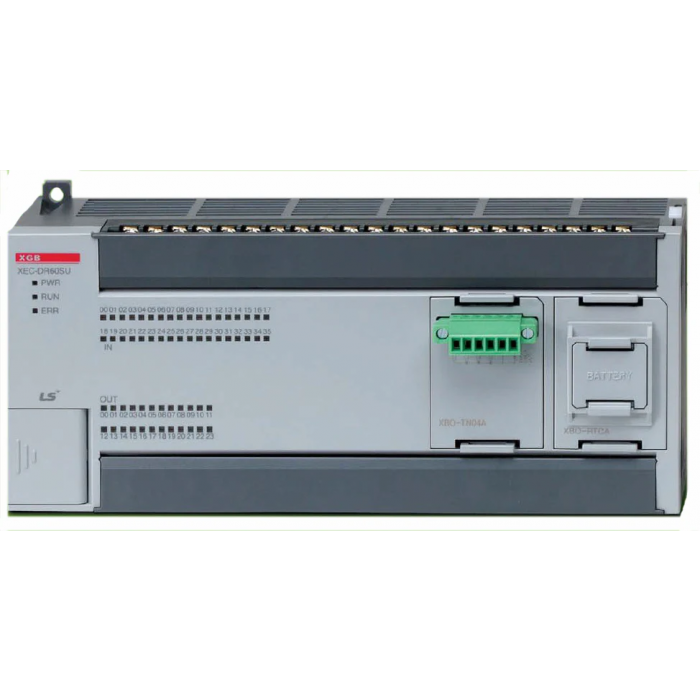

36 x 24V DC In 24 x NPN Out PS2/USB loader 1 Ch ea RS-232 and RS-485 HSC
Pricing available on request
Description:
- The micro-PLC that provides maximal automation at the lowest possible cost is the XGB series.
- With its excellent functionality and performance, it can handle tasks ranging from easy control to difficult ones.
- XGB has a user-friendly interface along with multiple network monitoring and diagnosis features, as well as a backup function.
Integrated programming environment:
- Enhanced user interface with XG5000/XG-PD
- Various monitoring functions.
- Network diagnosis and monitoring.
Optimum communication environment:
- Powerful communications: Built-in RS-232C / 485, 2 Expansions for communication
Network configuration via Ethernet and Cnet I/F
Specifications:
- Supply Voltage: 100-140V AC.
- Program capacity: 15k steps.
- Relay Output Rating: 2A Resistive.
- Max. I/O points: 384.
- Analogue, Input-, Output Resolution: 14-Bit.
- PID Control.
- High Speed Inputs.
- Positioning.
- Size: 135 x 64 x 90 mm.
- DC input: 36 points.
- Transistor output: 24 points.
- Rated voltage: AC110V~220V.
- Internal current consumption: 340 mA.
Key benefits:
- Compact.
- Cost-effective.
- LADDER and IEC-1131 programmable.
- From 38 to 284 I/O points.
- From 94 ns/step to 240 ns/step.
- From 4 to 200 K steps.
SKU | XBC-DN60SU |
---|---|
Brand | LS Electric |
