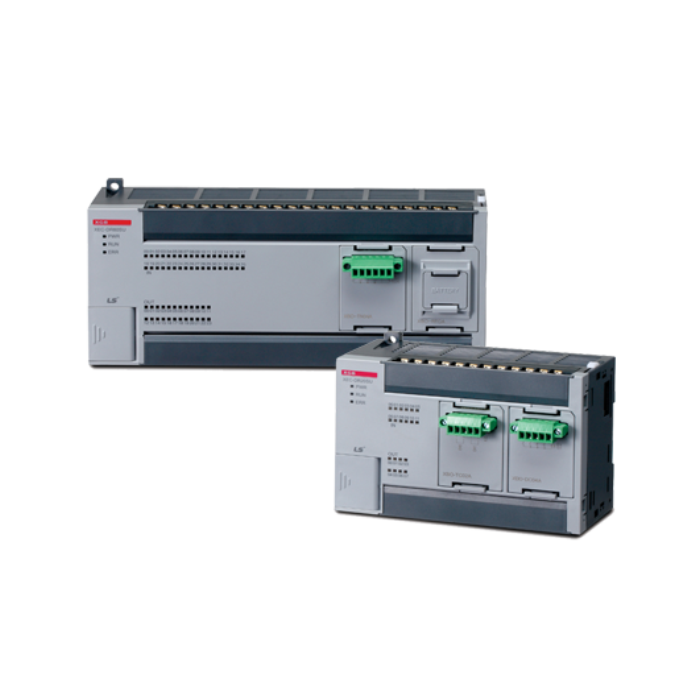

XBC Standard Type Unit, 36 x 24V DC In 24 x PNP Out PS2/USB loader
Description:
- It is a simple compact type with a variety of functions required for basic control. The expansion option module allows for space optimization.
- It facilitates the simple implementation of numerous projects by supporting a variety of networks and unique modules.
Transistor output Specifications:
- Output point: 24.
- Insulation method: Photo-coupler
- Rated load voltage: DC 12/24V
- Load voltage range: DC 10.2~26.4V
- Max. load voltage: 0.5A/1 point, 2A/ 1COM.
- Off leakage current: 0.1 mA or less
- Max. inrush current: 4A/10ms or less
- Max. voltage drop (on): DC 0.4V or less.
- Surges absorb: Zener diode.
- Response time: off-on: DC 12/24V ±10% (Ripple voltage 4 Vp-p or less), on-off: 25mA or less (DC 24V connection)
| Brand | LS Electric |
|---|
