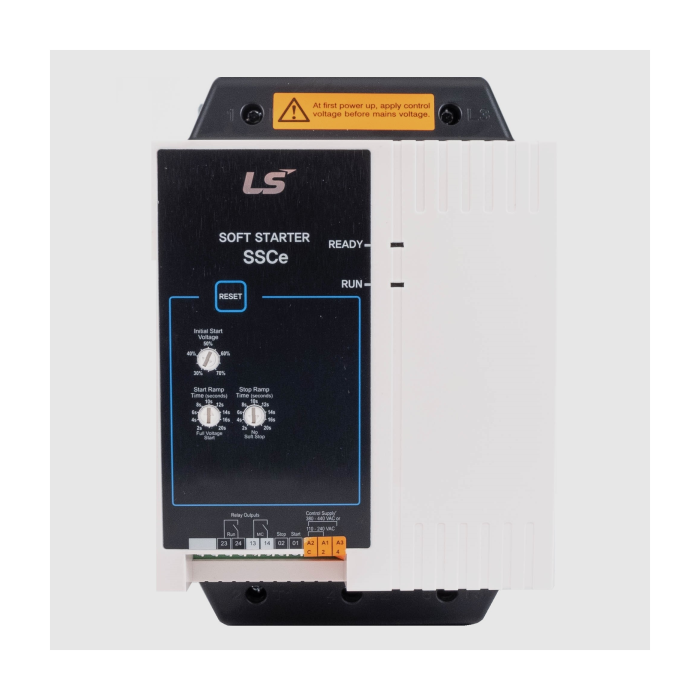

37 kW 75A FLC Basic Economic Type Built-in Bypass 200 - 440VAC Supply 24V.

ZAR 0.00 ZAR 0.00
Out of stock
SKU
SSCe-075-V4-C2-75A

Pricing available on request

Description:

  • A soft starter is a practical and affordable way to ensure the motor runs steadily.
  • With LS's vast experience and knowledge, we offer a solution to raise operating efficiency and reduce energy costs.

Specifications:

  • Binary Inputs: 2.
  • Relay outputs: 2.
  • Depth (mm): 193.
  • Width(mm): 145.
  • Height(mm): 215.
  • Power(kW): 37.
  • Supply Voltage (VAC): 200-400.
  • 3-phase.
  • Supply Voltage Frequency (Hz): 45-66.
  • Output Current (A): 75.
  • Operating Temperature: -10°C – 60°C.
  • IP Rating: 20.
  • Economic.
  • Analogue Ctrl.
  • 75A FLC.
  • Built-in Bypass Contactor.
  • Input Voltage 200 ~ 440Vac.
  • Control Voltage 24Vac/dc.
  • Analogue Settings.
  • Without Motor Protection.

Features:

  • Ultra compact design (Built-in bypass).
  • IEC/UL/KC Standards.
  • Easy operation & control.
  • Allows for fast diagnosis of a trip via two LEDs.
  • Suitable for mounting in a switchboard.
More Information
SKU SSCe-075-V4-C2-75A
Brand LS Electric
