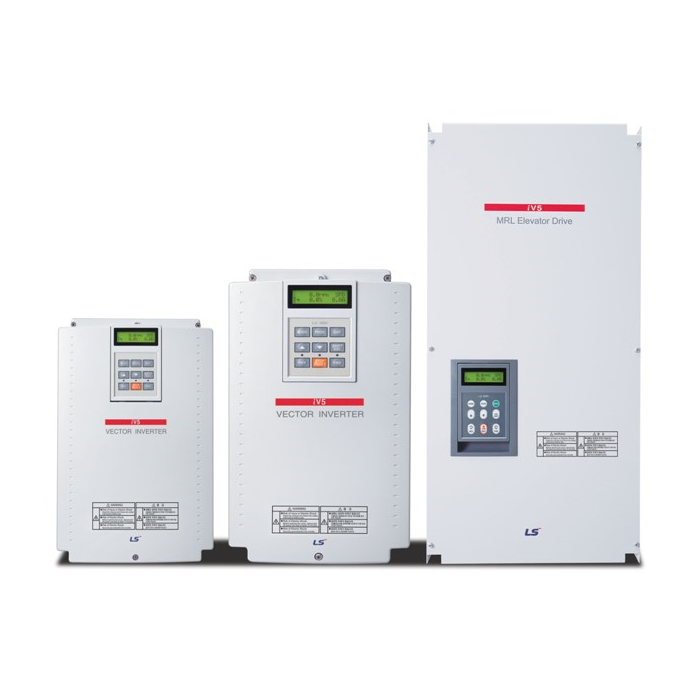

375kW AC380~480V 3 Ph Vector Drive Steel Case Built-in 5/12/15V Encoder Card
iV5L Series:
- This series achieves extremely fine vector control throughout the operational region, and its exceptionally precise speed control ensures excellent control stability in the controls of the elevator system and crane continuous line.
- Precise torque and speed control Precise management using the SIN/COS encoder PM Control without sensors Autotuning (when stationary) Process/Droop/Draw PID Control of the brakes.
- With its user-friendly keypad and detachable terminal blocks, it is simple to use.
- Numerous communication protocols, including Profibus-DP CC-Link, Device Net Profibus-RTU, and LS485 Modbus-RTU.
Specifications:
- Power: 375 Kw
- Voltage Input: 3 phase 380 - 480V AC (-15% to +10%) 50 - 60 Hz (±5%)
- Voltage Output: 3 phase 380 - 480V
- Rated Output Current: 731 A
- Overload capacity: 150% / 1 minute.
- Output Frequency: 0 – 400 Hz
- Operating temperature: -10 °C to +40 °
- High duty full flux vector control VFD LS iV5 Series
- 0~3600rpm
- Encoder (PG) Feedback for 5/12/15V
- IP00
| Brand | LS Electric |
|---|
