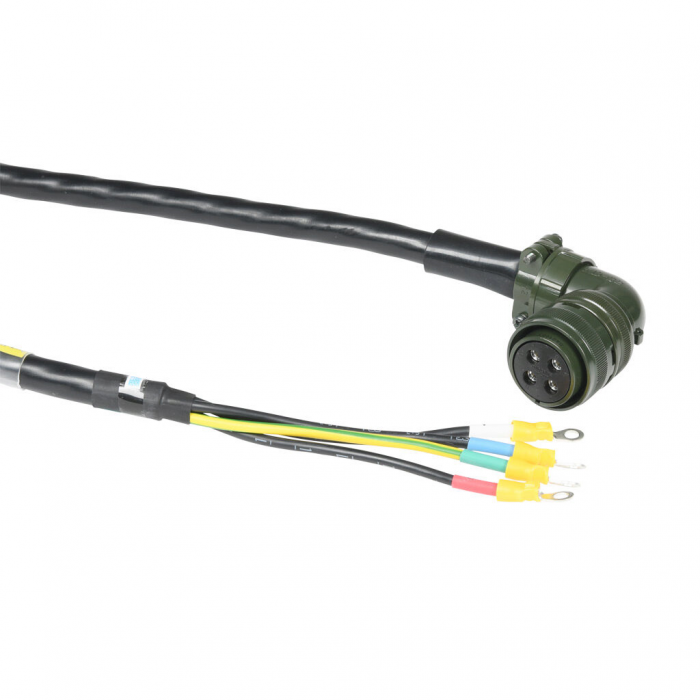

3m Power cable 200V APM- FF & FG Motors 180 / 220 Frame Mil-spec Plug
Specifications:
- Series: L7 Series 200V.
- Cable type: Power cable.
- Non-Moving type.
- Cable length: 3m
- Motor Power cables 180/220 Frame 1.2 - 3.5kW 200V FF, FG Motors.
Motor side connector:
- Plug spec: MS3108A 22-22S (MS).
Drive side connector:
- U, V, W Pin spec: 2512 (Ferrule).
- FG Pin spec: 2.5 x 4 (Ring terminal).
Cable spec:
- 4C x 2.5SQ or 4C x 14AWG.
| Brand | LS Electric |
|---|
