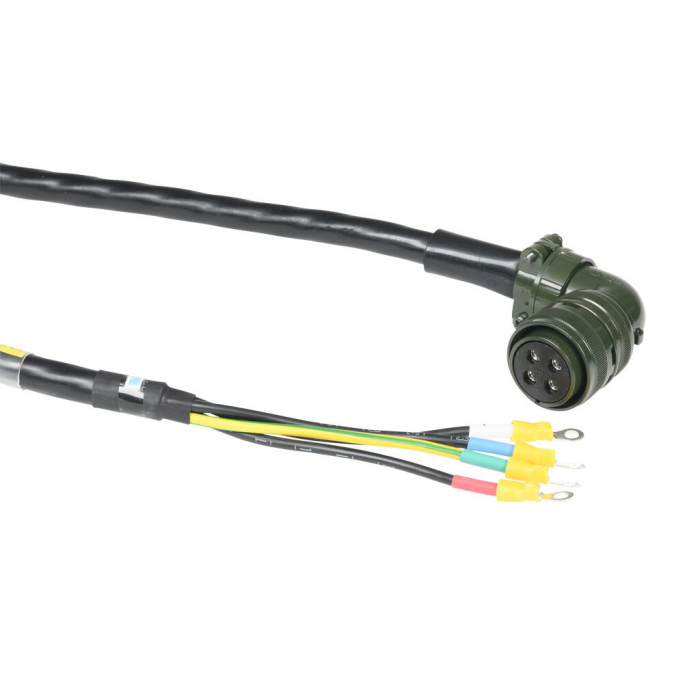

3m Robotic Power cable 200V APM- FF & FG Motors 180 / 220 Frame Mil-spec Plug

ZAR 0.00 ZAR 0.00
Out of stock
SKU
APCS-PF03IS

Pricing available on request

Specifications:

  • Series: L7 Series 200V.
  • Cable type: Power cable.
  • Moving type.
  • Cable length: 3m.
  • Motor Power cables 180/220 Frame 1.2 - 3.5kW 200V FF, FG Motors.
  • Motor side connector: Plug spec MS3108A 22-22S (MS).
  • Drive side connector:
    • U, V, W Pin spec: 2512 (Ferrule).
    • FG Pin spec: 2.5 x 4 (Ring terminal).
  • Cable spec: 4C x 2.5SQ or 4C x 14AWG.

More Information
SKU APCS-PF03IS
Brand LS Electric
