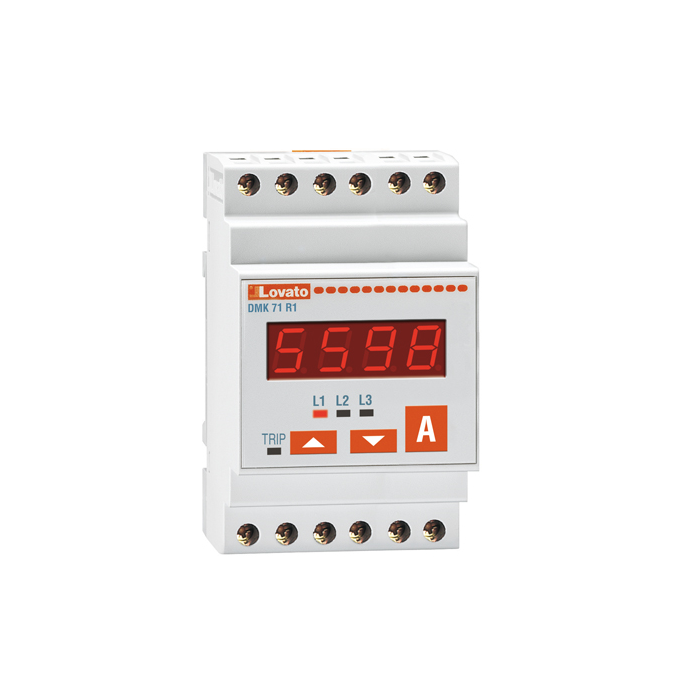

3PH DIGITAL CURRENT MONITOR RELAY
DMK modular digital monitoring devices:
- Auxiliary supply: 220 - 240 VAC.
- 1 changeover relay output (8A 250 VAC).
- Instantaneous or preset trip delays (0 - 900sec).
- Modular DIN rail mounting (3 modules - 54 mm wide).
- Memorises minimum and maximum measured values (since last reset).
Specifications:
- SERIES: DMK series.
- DESCRIPTION: 3-phase over/under current meter/monitor.
- AUXILIARY POWER SUPPLY: 220 - 240 VAC.
- INSTANTANEOUS OR PRESET TRIP DELAYS: 0 - 900 second.
- 1 changeover relay output: 8A 250 VAC.
- MONITORING RANGE: 0.05A - 5.75A.
- MOUNTING: Modular DIN rail mounting (3 modules - 54 mm wide).
| Brand | Lovato electric |
|---|
