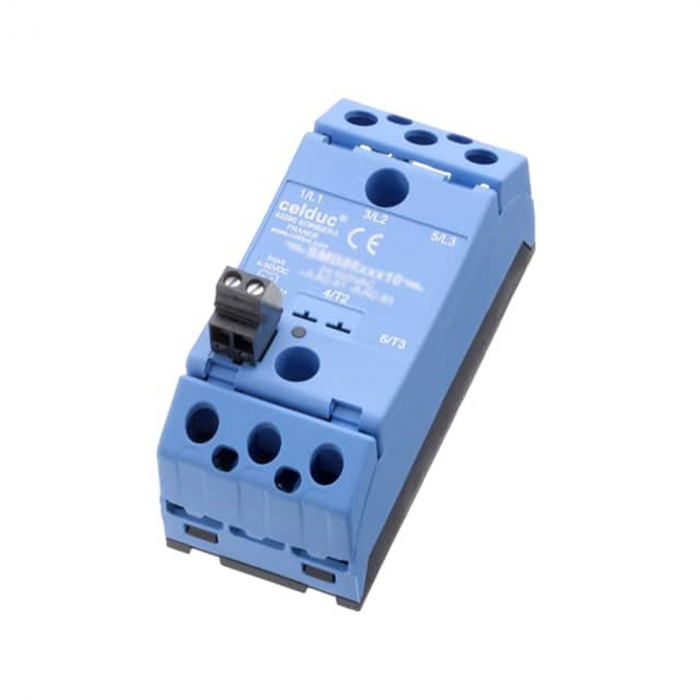

3X35A 150-520VAC 3 PHASE SOLID STATE RELAY
Three-phase solid state relays in the Sight-Pac series:
- For a long lifespan and large surge currents, all three-phase solid state relays use modern, highly efficient back-to-back thyristors on the output with TMS technology.
- Intended to regulate loads linked in star or delta configurations (if balanced without neutral) using three wires and three phases.
- The SSR switches two of the three phases, with the third being connected directly.
Three-phase, two-leg SMB series solid state relay:
- Made to regulate three-phase loads that are coupled in a delta or star configuration (if balanced).
- The SSR switches two of the three phases, with the third phase being connected directly.
- Zero Cross Solid-State relay with three phases with a single direct linked phase
intended to support resistive loads.
General features:
- Manage the LED status.
- Intended to support resistive loads.
- Complies with: CEI 62314, UL-cUL, IEC/EN 60947-4-3.
- One direct connected phase and three phase zero cross solid-state relays are combined.
Specifications:
- SERIES: SMB series
- DESCRIPTION: Three phase solid state relay
- MAXIMUM THYRISTOR RATING: 2 x 75A
- SWITCHING CURRENT: 3 x 35A
- SWITCHING VOLTAGE: 150 - 520 VAC
- PEAK VOLTAGE: 1600V
- CONTROL VOLTAGE: 4 - 30 VDC
- DIMENSIONS (MM): (H) 100 x (W) 76.5 x (D) 35.5.
| Brand | Celduc relais |
|---|
