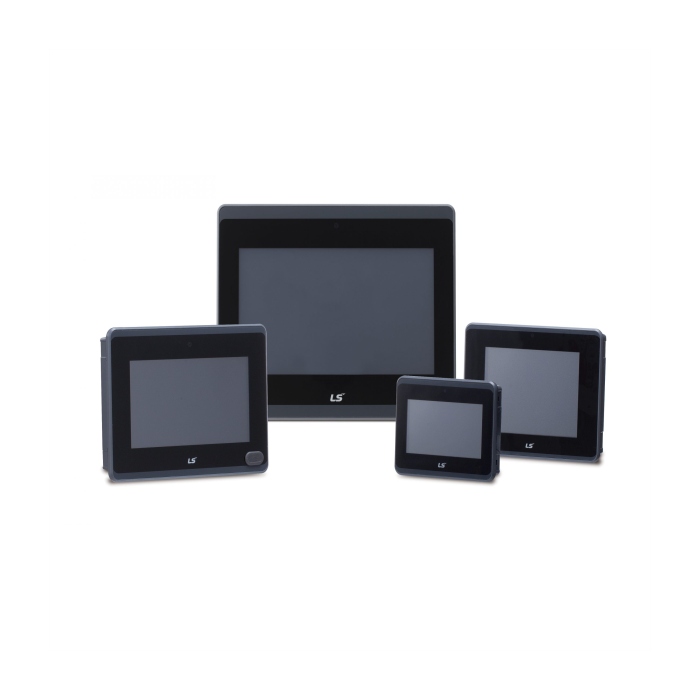

XGT Panel 4.3" TFT LCD 24-bit Color 24V DC 1 Ch each Ethernet USB RS232 RS485/422
Features:
- There is a vertical mounting option.
- Configuring the XP-builder: (COMMON) (Setting for a Project Property)
- The XGT Panel can show PDF files.
- In the event of an alarm, the troubleshooting content for the alarm can be seen on location as a PDF file.
- A PDF viewing object can be used to view PDF files on an FTP server.
- An entity with the ability to connect to an FTP server and download a given file is called an FTP client.
- A PDF viewer object can be used to view PDF files on an FTP server.
- With VNC Viewer, a PC or HMI can be remotely monitored.
- Via XP-Manager, download the VNC server to the HMI.
- Install a Universe VNC server (such as Real VNC, Ultra VNC, etc.) on your computer.
- To the project screen, add the VNC Viewer object.
- Quick and fast screen change and booting
- Cortex A8 800 MHz CPU
- Various communication drivers
- Micro SD card support
- Compatibility with eXP
- LCD Lifetime increased by 2.5 times.
Specifications:
- Screen size: 4.3˝ (10,9cm)
- Indication degree: Left/Right:60 deg. Upper:40 deg. Lower:60 deg.
- Memory: Memory 64 Mb, Operating RAM 512 Mb, Backup RAM 128 Kb
- Connectors: RS-232C/485 connector, RS-422/485 connector, Ethernet terminal, Micro SD card, USB 2.0 port.
- Operating temperature: 0 °C to +50 °C
- Dimension: 128 x 102 x 32.5 mm (W x H x D)
- Protection: IP66
- LCD TFT color 480X 272 pixels
- 24Bit Color (16.7M)
- Windows CE 7.0 (Core) platform
- Brightness (LCD) 550 cd/m2
- ARM Cortex A8 800MHz, eMMC 4G, DDR3.
- Standard Model: RS-232C/RS-485/RS-422/Ethernet
- DC24V; 4W
| Brand | LS Electric |
|---|
