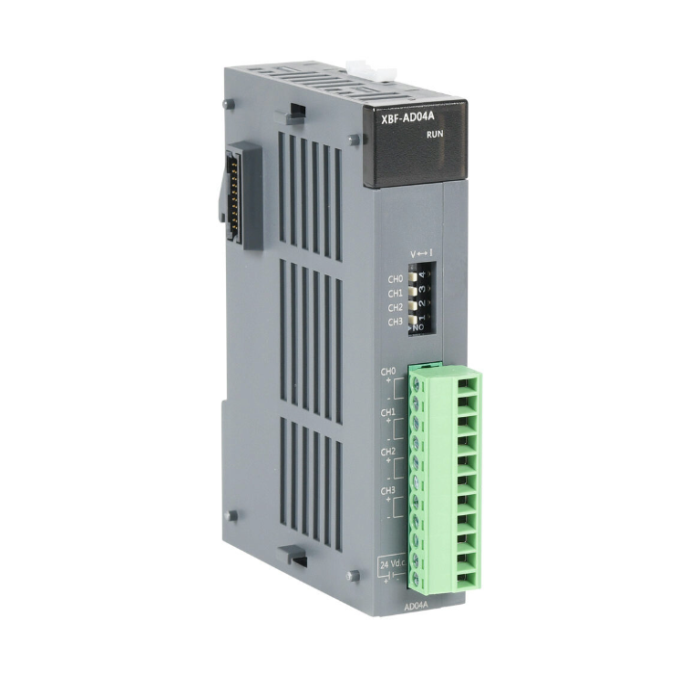

XGB Analog Input Module, 4-channel, 12 bits
Features:
- Module for XGB series expansion, XBF-AD04A.
- Four-channel analog input (12-bit) for current and voltage.
- 120 mA of expansion power is needed.
- Usable with PLCs of the SU, M, and U types.
Specifications:
- Number of Channels: 4
- Internal Current Consumption: 120mA
- External Current Consumption: 62mA @ 24VDC/point
- Range Voltage: 1-5VDC, 0-5VDC, 0-10VDC (Input resistance: 1MΩ min.)
- Current: 4 to 20mA, 0 to 20 mA (Input resistance 250Ω)
- Signal Resolution: 12 bits.
- Max Resolution Voltage: 2.5mV (0-10VDC); Current: 5µA (4-20mA, 0-20mA)
- Unsigned Value: 0 to 4000
- Signed Value: -2000 to 2000
- Accuracy: ±0.5% max.
- Max Conversion Speed: 1.5ms/channel
- Max Absolute Input Voltage: DC ±15V
- Current: DC ±25mA
| Brand | LS Electric |
|---|
