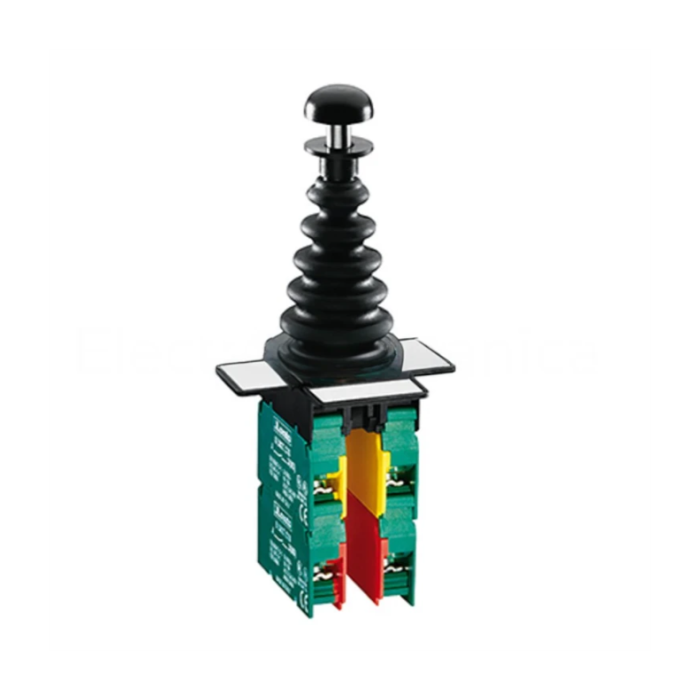

4 DIRECTION STAYPUT JOYSTICK ACTUATOR
Joystick manipulators:
Materials:
- The plastic components are constructed of polyamide and polycarbonate, while the metal pieces are made of an alloy called Zama, which is an aluminium and zinc mixture.
- NBR rubber is used to make the sealing boot.
Mechanical endurance:
- A mechanical life of one million cycles.
Contact elements and mounting adapter:
- The joystick comes pre-assembled with both the mounting adapter and the contact elements.
- The mounting surface of the adapter is secured by integrated screws (T max = 0.8Nm/0.59lbft).
- A straightforward rotation is used to secure the joystick to the mounting adaptor.
Specification:
- CONTACTS: 4 NO
- DIRECTION: 4 (up/down/left/right)
- DESCRIPTION: Joystick controller.
- ACTION: Stay put
Brand | Lovato electric |
---|
