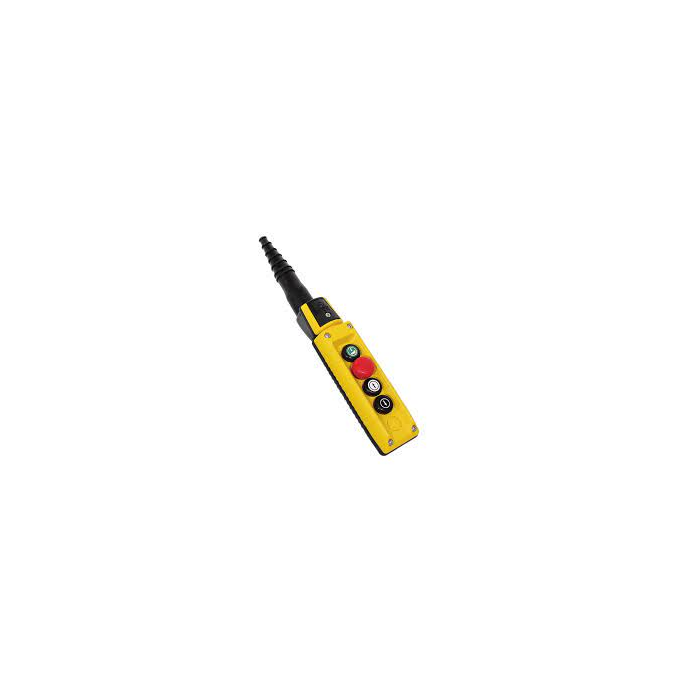

4 WAY MIKE PENDANT STATION: 1 SPEED BUTTON 1 NO: 0. 2 SPEED BUTTON 1 NO + 1 NO: 2.

ZAR 2,794.43
Out of stock
SKU
F70AY120002-2

Specifications:

  • SERIES: MIKE series
  • NO OF WAYS: 4 way
  • DESCRIPTION: Single row pendant station
  • INDEX PROTECTION IP: IP66 / IP67 / IP69K
  • OPERATIONAL TEMPERATURE: -40°C - +80°C
  • MECHANICAL LIFE: 1 x 10⁶ operations
  • RESET/ALARM 2 NO: 1
  • MUSHROOM E/STOP 1 NC: 1
  • 1 SPEED BUTTON 1 NO: 0
  • 2 SPEED BUTTON 1 NO + 1 NO: 2
  • STANDARDS OF COMFORMITY: IEC/EN 60204-1, 60947-1, 60947-5-1, 60529, EN418

Pendant control stations for MIKE:

  • Heavy-duty applications are the focus of MIKE pendant stations.
  • The molded two-color button discs provide permanent, readable lettering and symbols, and the mounted rubber pushbuttons ensure complete dust protection.
  • Antislip grooves on the case, along with its innovative ergonomic shape and design and compact proportions, improve comfort of use and lessen fatigue under all working conditions.
  • The unique hanging system with cables hidden within the housing shell and the separation of the actuators (mounted on the top cover) from the contact blocks (attached to the base along with the cable entrance) optimize wiring and maintenance.

Important characteristics:

  • Materials that withstand the weather and provide assurance against dust and water infiltration
  • An additional actuator (front or bottom base) with up to three connections can be attached to the pendant station.

Additional fees apply; standard elements may be substituted with:

  • 1/2 SPD double depression 2 speed button and contact instead of 1 speed.
  • 1/2 MSRM double depression 2 speed button and contact instead of mushroom + reset.
  • 1/1 MSRM single depression 1 speed button and contact instead of mushroom + reset.
More Information
Brand TER
