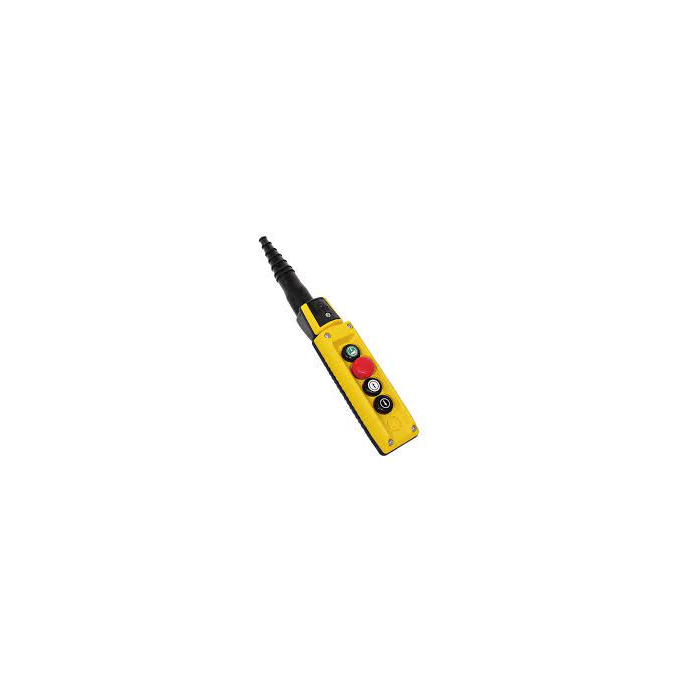

4 WAY MIKE PENDANT STATION: 1 SPEED BUTTON 1 NO: 2. 2 SPEED BUTTON 1 NO + 1 NO: 2.
Specifications:
- SERIES: MIKE series.
- NO OF WAYS: 4 way.
- DESCRIPTION: Single row pendant station.
- INDEX PROTECTION IP: IP66 / IP67 / IP69K.
- OPERATIONAL TEMPERATURE: -40°C - +80°C.
- MECHANICAL LIFE: 1 x 10⁶ operations.
- RESET/ALARM 2 NO: 0.
- MUSHROOM E/STOP 1 NC: 0.
- 1 SPEED BUTTON 1 NO: 2.
- 2 SPEED BUTTON 1 NO + 1 NO: 2.
- STANDARDS OF COMFORMITY: IEC/EN 60204-1, 60947-1, 60947-5-1, 60529, EN418.
MIKE pendant control units:
- Heavy-duty applications are the focus of MIKE pendant stations.
- The molded two-color button discs provide permanent, readable lettering and symbols, and the mounted rubber pushbuttons ensure complete dust protection.
- The new ergonomic form and design of the case, along with its anti-slip grooves, reduce user fatigue and facilitate easier operation in any working setting.
- By separating the actuators (mounted on the top cover) from the contact blocks (attached to the base along with the cable intake) and utilizing an inventive hanging system with wires hidden within the housing shell, wiring and maintenance are made easier.
Important components:
Additional fees apply; standard elements may be substituted with:
| Brand | TER |
|---|
