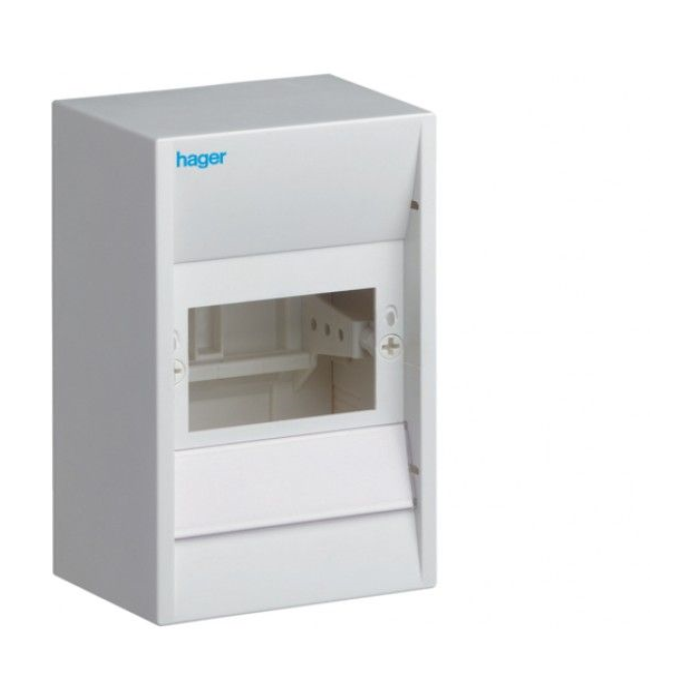

4 WAY SURFACE MCB SHROUD
Description:
- Surface mounting compatible, the GD104B is a sturdy, small enclosure from the MINI GAMMA series.
- Small circuit breakers (MCBs) and other modular devices fit perfectly in its housing, offering an elegant and well-organized option for electrical installations.
- This enclosure is a well-liked option for both residential and commercial applications because of its reputation for dependability and simplicity of installation.
Specifications:
- Rated voltage: 230 V.
- Installation / assembly: Surface mounting.
- Rated current: 40 A.
- Equipment: Includes DIN rail for mounting devices.
- Number of rails: 1.
- Number of queues: 1.
- With zipper: No.
- It has a neutral terminal block: Yes.
- It has a grounding terminal block: Yes.
- It has a mounting plate: No.
- Number of modules: 4.
- Dimensions:
- Height: 180 mm.
- Width: 110 mm.
- Depth: 82 mm.
- Number of Width Units: 4.
- Lid, Door: Hinged transparent door available.
- The door/lid is transparent: No.
- Materials:
- Material: Plastic.
- Colour: White.
- Colour RAL: RAL 9010 (Pure white).
- Protection:
- Protection index: IP30 (IP40 with door).
- Protection class: II.
- IK impact resistance: IK05.
- IP Protection Index: IP30 (IP40 with door).
- Receives lock: No.
- Glow wire test: 650°C.
| Brand | :hager |
|---|
