400 Watt Servo 220V AC Pulse / Analogue Control Pulse Enc. Motors

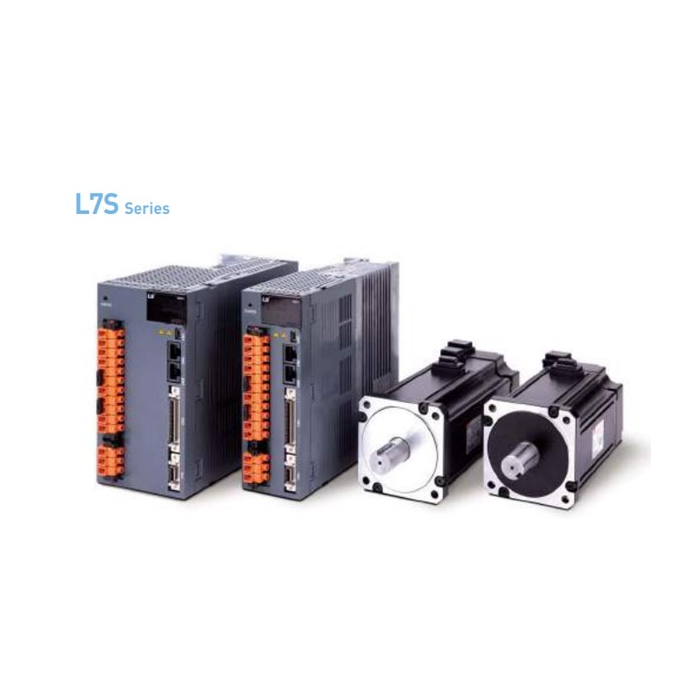

L7S Series:
- Easy Gain Adjustment with Automated Inertia Calculation.
- Easy-Setting Built-in Panel Operator.
- Numerous I/O contacts and multiple functions (ten contacts for digital input) Eight contacts are output digitally; two contacts are output analogically.
- CE and RoHS-certified.
- The function of warning and protection for drives.
- Serial Type Encoder with High Resolutions (19-Bit BiSS).
- Increased Frequency of Speed Response (1 KHz).
Specifications:
- Supply voltage: Phase 220VAC (1 Phase 220VAC)
- Encoder Type: incremental
- Strength: 400W
- Communication Protocol: Standard I/O
- Rated current: 3.0A
- Peak current: 9.0A
- Encoder type: Quad. Type incremental line driver 2,000~10,000 (P/R) Serial type 18 bit (100WC M8 only), 19-bit, 20 bit (DD motor only).
- Encoder: Serial BiSS encoder and quadrature encoder supported.
- Encoder output type: Random pre-scale output through FPGA (Max. 6.4Mpps)
- Input power: Main power supply: 3 phase AC200 ~230 (V) -15~+10 (%), 50~60 (Hz).
- Input power: Control power supply: single phase AC200~230(V) -15~+10(%), 50~60(Hz).
- Analog input range: DC -10~10(V).
- Analog input resolution: 12 (bit).
- Analog output range: DC -10~10(V).
- Analog output resolution: 12 (bit).
- RS-422 Communication: Accessible to PC software and the RS422 server.
- USB Communication: Status monitoring, JOG operation, parameter upload/download are available with PC software.
- Operating temperature: 0~50°C/-20~70°C
- Environment: indoor, avoid corrosive, inflammable gas or liquid and electrically conductive dust.
- Speed control range: Max. 1:5000
- Frequency response: Max. 1 (kHz) or above (when using 19-bit encoder)
- Speed command: DC -10~10V (Reverse rotation in case of negative voltage).
| Brand | LS Electric |
|---|
