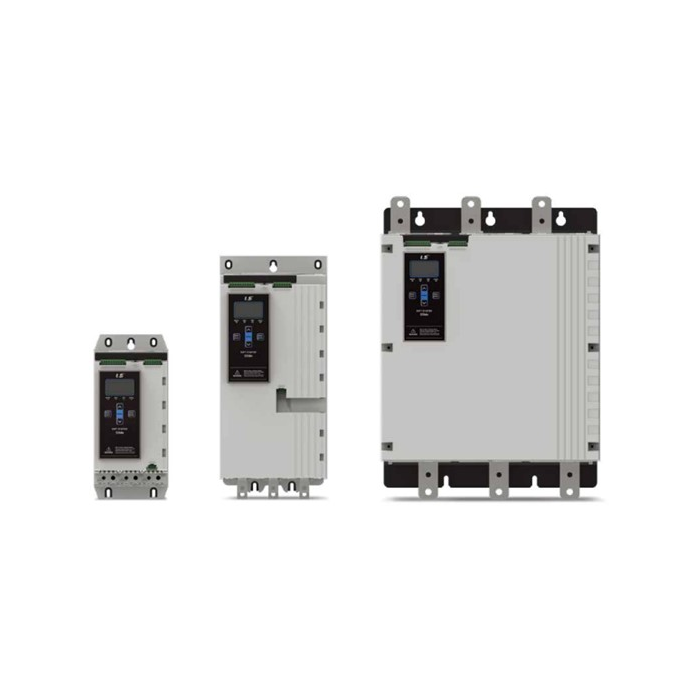

45 kW 86A FLC Standard Economic-Type 200 - 525 Vac Supply 110 - 440 Vac
Description:
- A soft starter is a practical and affordable way to ensure the motor runs steadily.
- With LS's extensive experience and knowledge, we offer a solution to raise operating efficiency and reduce energy costs.
Features:
- Easy Operation and Control
- Motor Protection
- Built-in bypass
- Compact Design, Easy to integrate.
- Timed Voltage Ramp System
- Convenient Status and Trip Check with LED Indicator
Specifications:
- 45kW Soft Starter
- Normal duty: 45 kW 86A 400 V AC
- Heavy duty: 37 kW 69A 400 V AC
- Economic
- Digital Control
- 105A FLC
- Built-in Bypass Contactor
- Input Voltage 200 ~ 525V AC
- Control Voltage 110 ~ 120 and 220 ~ 240V AC
- Main Voltage: 110~120 and 220~240 V AC
- Analog Settings
- Without Motor Protection
- IP20
- Size: 152 x 336 x 231 mm (W x H x D)
SSM Series:
- Zero Harmonics on Smart Cards
- System Protection: Power Through minimizes on-site downtime while allowing for continued operation in emergency scenarios.
- Both still have the greatest capacity for protection and control.
- Design with the System's Total Efficiency in Mind: Choosing the right motor control mode is just as crucial as using energy-efficient components.
- It is more effective to use a soft starter rather than a VFD when operating at a fixed speed.
- Effective Function: SSM Soft Starters operate at 99.5% efficiency when powered by an internal bypass.
- Graphical Display
- Simple commissioning through fast application setup
- Support for eight languages, including English, Portuguese, Chinese, French, Spanish, Italian, German, and Russian, is multilingual.
- Six network connections make for a strong network connection. Modbus TCP/PROFINET/Ethernet IP/Profibus/Device Net/Modbus RTU
- Automated Schedulers and Timers: Quick and easy automation that does not require timers or additional logic.
| Brand | LS Electric |
|---|
