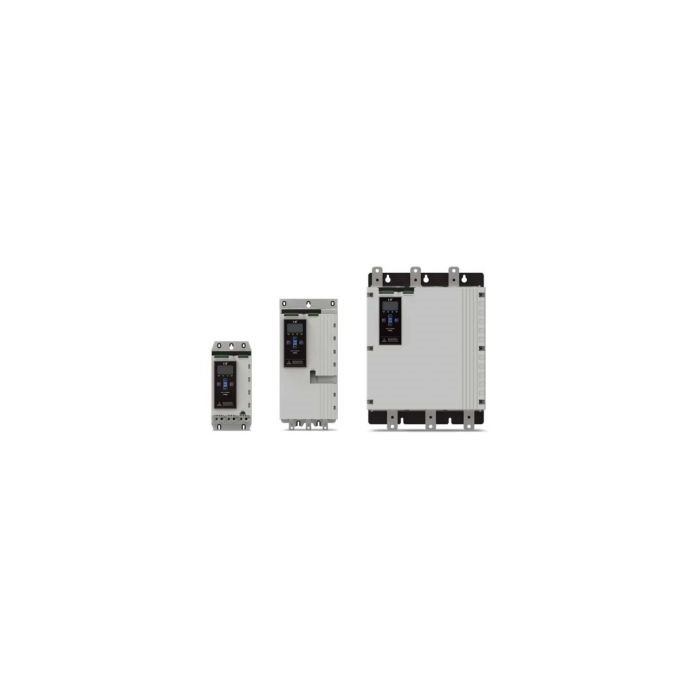

45 kW 86A FLC Standard Economic-Type 380 - 690 Vac Supply 24V Control Bypass Keypad

ZAR 35,289.00
Out of stock
SKU
SSMe-0105B-V7-C2

Description:

  • A soft starter is a practical and affordable way to ensure the motor runs steadily.
  • With LS's extensive experience and knowledge, we offer a solution to raise operating efficiency and reduce energy costs.

Features:

  • Easy Operation and Control
  • Motor Protection
  • Built-in bypass
  • Compact Design, Easy to integrate.
  • Timed Voltage Ramp System
  • Convenient Status and Trip Check with LED Indicator

Specifications:

  • Main voltage: 380~690VAC (± 10%).
  • Control voltage: 24VAC/VDC (±20%), 2.8A.
  • Main frequency: 50~60Hz (±5Hz).
  • Rated insulation voltage to earth: 600VAC.
  • Rated impulse withstand voltage: 6KV.
  • From designation: Bypassed or continuous, semiconductor motor starter form 1.
  • Short circuit capability: coordination with semiconductor fuses (Type 2), Coordination with HRC fuses (Type 1).
  • EMC immunity: IEC 60947-4-2.
  • EMC emissions: NIEC 60947-4-2 class B.
  • Input Rating: Active 24 VDC, 8mA approximately.
  • Motor Thermistor: Trip > 3.6kΩ, Reset < 1.6kΩ.
  • Relay outputs: 10A at 250VAC Resistive, 5A at 250VAC AC15 pf 0.3.

SSM Series:

  • Zero Harmonics on Smart Cards
  • System Protection: Power Through minimizes on-site downtime while allowing for continued operation in emergency scenarios.
  • Both still have the greatest capacity for protection and control.
  • Design with the System's Total Efficiency in Mind: Choosing the right motor control mode is just as crucial as using energy-efficient components.
  • It is more effective to use a soft starter rather than a VFD when operating at a fixed speed.
  • Effective Function: SSM Soft Starters operate at 99.5% efficiency when powered by an internal bypass.
  • Graphical Display
  • Simple commissioning through fast application setup
  • Support for eight languages, including English, Portuguese, Chinese, French, Spanish, Italian, German, and Russian, is multilingual.
  • Six network connections make for a strong network connection. Modbus TCP/PROFINET/Ethernet IP/Profibus/Device Net/Modbus RTU
  • Automated Schedulers and Timers: Quick and easy automation that does not require timers or additional logic.
More Information
Brand LS Electric
