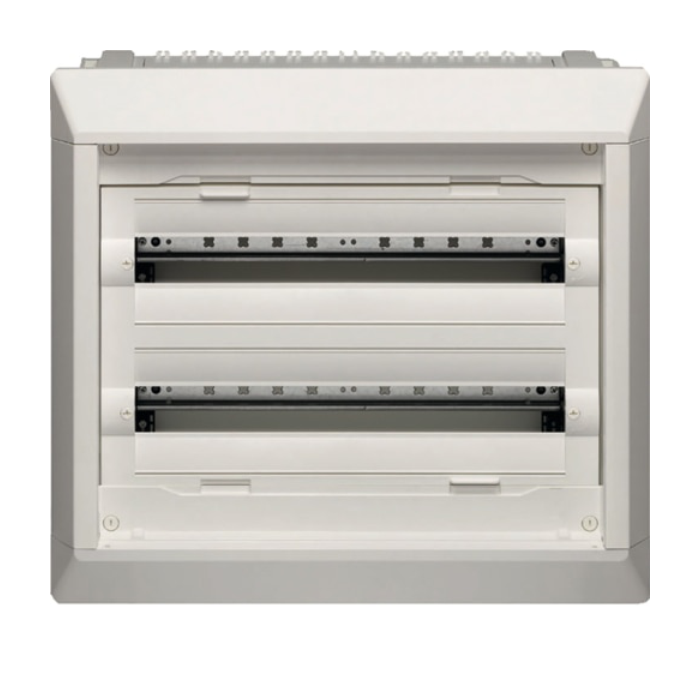

48 WAY FLUSH MOUNTING VEGA-D DISTRIBUTION BOARD
Distribution boards for surface and flush mounting in the Vega D series (IP41 when doors are installed):
- Installing Vega D enclosures for supply up to 250A is appropriate for both residential and commercial structures.
- Supplied in an assembly-ready state.
- There are 24 module rows in each enclosure.
Features:
- Enclosure for metallic surface mounting.
- Quick-connect earth connections that are integrated.
- Front frame that can be removed for best access to installed internal devices.
- Doors made of sheet metal (without a window or with one) must be purchased individually.
Flush-mounting boards:
- Moveable upright-equipped chassis that supports modular devices.
- Metallic finishing frame that is easily removable Metallic flush mounting tray (depth 110 mm with shielded cable entrances top and bottom; DN=40 / AN=72 mm).
Vega D series; number of modular ways: 48 (2 x 24). - DESCRIPTION: Index Protection Surface Mounting
- Distribution Board IP: class II fully insulated, IP30/IK07 (doorless) - IP41/IK08 (doored).
- COLOUR: Pale Gray 9010 RAL
- DIMENSIONS (MM): (H) 537 x (W) 550 x (D) 150
| Brand | :hager |
|---|
