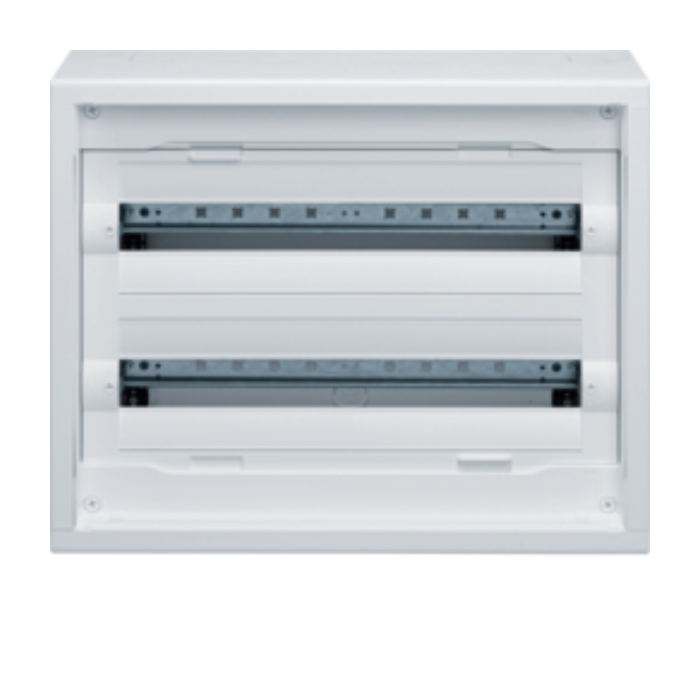

48W VEGA-D SURFACE DISTRIBUTION BOARD
Description:
- The NewVegaD series of surface-mounted distribution boards, including the Hager FD22DN, is made to offer a dependable and well-organized solution for electrical installations.
- This enclosure provides a reliable and effective method of managing electrical circuits and is appropriate for both home and commercial applications.
- The FD22DN guarantees durability and safety with its well-made design and simple installation procedure.
Specifications:
- Product Code: FD22DN.
- EAN: 3250612548262.
- Compatibility: Hager VegaD enclosures.
- Material: Plastic/metal with powder-coated surface treatment.
- Colour: Pure white (RAL 9010).
- Installation: Surface-mounting.
- Dimensions:
- Depth: 193 mm.
- Height: 450 mm.
- Width: 550 mm.
- Width in Division Units: 24.
- Number of Modules: 48.
- Number of Rows: 2.
- Quantity of Rails: 2.
- Main Electrical Features:
- Nominal Voltage: 230/400 V.
- Rated Current: 160 A.
- Cover and Door:
- Cover Type: With notch.
- Door Locking: Without.
- Transparent Cover or Door: No.
- Connection:
- Number of Conduit Inlets: 4.
- Number of Openings for Flange Plates: 2.
- Compliance:
- REACH Conform: No.
- RoHS Conform: Yes.
- Halogen Free: No.
- Protection Index:
- IP30/IK07 (without door).
- IP41/IK08 (with door).
- Packaging: 1 piece per package.
| Brand | :hager |
|---|
