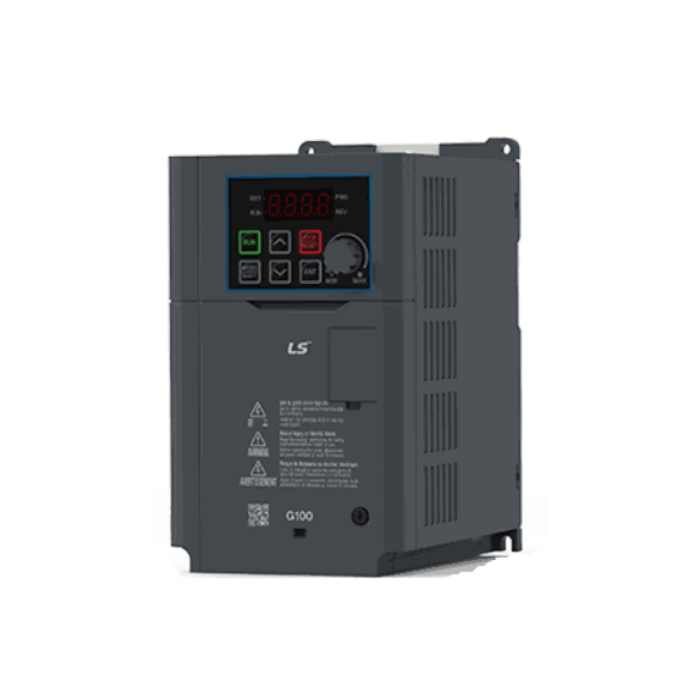

G100 General Drive 5.5kW 3 Ph 380V Heavy Duty Built-in C3 filter LED K-Pad pot. brake chopper RS-485
Description:
- The LS Electrical G100/G100C General AC Drive series provides strong and dependable motor control solutions and is intended for high-performance industrial applications.
- These drives have power ratings ranging from 0.4kW to 22kW (equal to 1/2 to 30HP), and they handle three-phase input voltages of 200-240V and 380-480V.
- The G100C model offers improved performance and user-friendly features, while the G100 series boasts sensor-less vector control, which offers accurate and effective motor management.
- Both models meet UL 61800-5-1 requirements and are constructed with a MIL217Plus-based design for enhanced dependability and durability.
- With options for DIN rail mounting and Modbus connection for a smooth integration into current systems, the drives also provide simple installation and maintenance.
Specifications:
- Inverter output voltage: 3 x 400V AC
- Voltage between phases (for three phase system): 3 x 380...480V AC
- Voltage output: 0...12V DC
- Mounting: DIN rail mounting or wall mounting
- Number of inputs: 5
- Number of analog inputs: 1
- Operating temperature: -10...50°C
- Output frequency: 0...400Hz.
- Current rating: 13A
- Number of analog outputs: 1
- Dual rating: 5.5kW/12A Heavy Duty-150% Overload/1 min 7.5kW/16A Normal Duty-120% Overload/1 min
- 3 Phase Input 3 Phase Output
- 380-480 Volts
- Control modes: U/f Slip compensation Sensor less vector IM.
- Output frequency: 0.1 - 400 Hz - U/f 0-120 Hz - IM Sensor less.
- LED Keypad
- Built-in EMC filter(C3)- Industrial
- BRAKE CHOPER BUILD IN
- PNP / NPN logic
- Standard IO - control terminal I/O 5mm pitch
- Dual motor parameters KEB function
- PID controller
- RS 485 interface-LS Bus / Modbus RTU
- Drive View Software.
- The G100 inverter supports both PNP (Source) and NPN (Sink) modes for sequence
- Inputs at the terminal
- Built-in Potentiometer
- Remote Keypad
- Smart Copier
- Fieldbus Options
- Built-in 2 Relay
- DIN rail Mount (Below 4kW)
- Fan Replacement
- I/O Terminal (5mm)
- Operation Group
| Brand | LS Electric |
|---|
