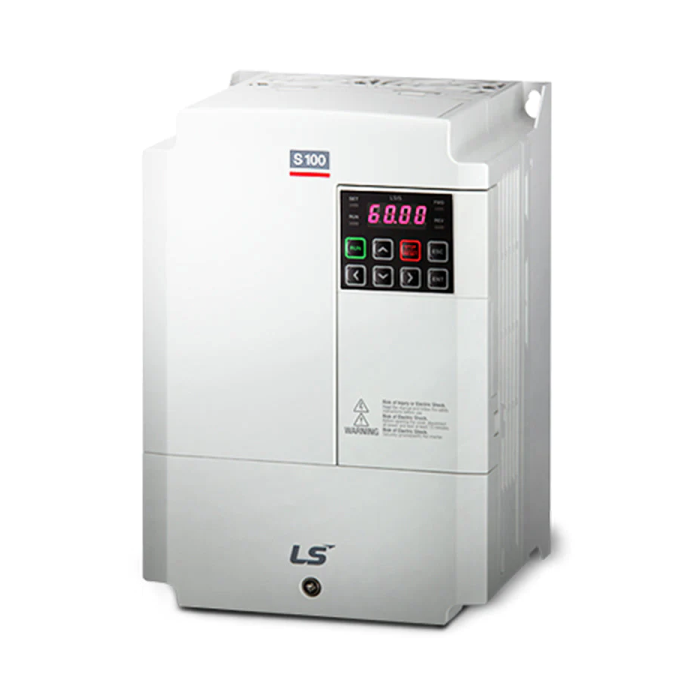

S100 Standard Drive 5.5kW 3 Phase 380VAC Heavy Duty Dual-Rated DBU C3 EMC Filter Multi I/O
Description:
- High-performance standard drives like the LS Electrical S100 series are made for a variety of industrial uses.
- With sensor-less vector control, it provides excellent motor control and can achieve a starting torque of more than 200% at 0.5 Hz.
- The S100 series is adaptable to a range of power needs since it can handle single-phase (0.4-2.2kW) and three-phase (0.4-75kW) input voltages.
- It improves safety and dependability with integrated DC reactors, Safe Torque Off inputs, and EMC filters.
- To provide a smooth integration into current systems, the S100 series also includes energy-saving algorithms, side-by-side installation capability, and compliance with open field networks like Profibus-DP, CANopen, and EtherNet.
Specifications:
- Max motor power: 5.5/7.5kW
- Inverter output voltage: 3 x 400V AC
- Voltage between phases (for three phase system): 3 x 380...480V AC
- Mounting: Wall mounting
- Number of inputs: 11
- Number of analog inputs: 2
- Operating temperature: -10...50°C
- Output frequency: 0...400Hz.
- Current rating: 16A
- Number of analog outputs: 1
- Supply voltage: 3 Phase 380VAC.
- Output Type: Analogue DC 0~10V /4~20mA /0~20mA.
- Output Type: Digital Programmable Transistor
- Output Type: Digital Programmable Relay (NO/NC)
- Other Feature: Built-in EMC Filter
- Other Feature: Internal Braking Unit
- Display Type: LED
- Input Type: 7 Pieces Prog. PNP/NPN
- Input Type: Analogue DC 0~10V /4~20mA /0~20mA.
- Input Type: Analogue DC 0~10V.
- Strength: 5.5 kW
| Brand | LS Electric |
|---|
