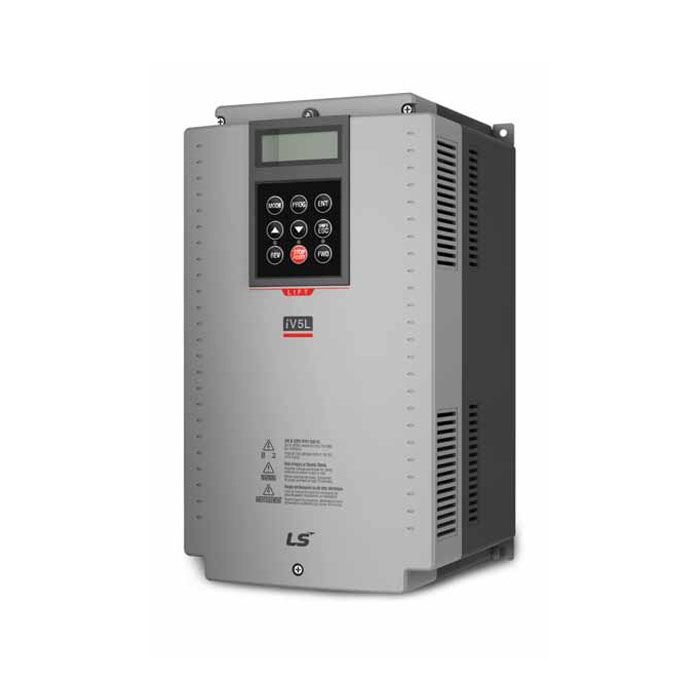

5.5kW AC380-460V 3 Phase built-in Dynamic braking transistor
Pricing available on request
iV5L Series:
- Integrated software for both IM and PM control.
- Safe Torque Off (STO) is built in.
- Auto Torque Boost: Secured performance with open loop control.
- Anti-rollback: When the lift brake opens, this prevents rollback by starting torque compensation via encoder position control.
- The ALLS (Automatic Light Load Search) function enables the lift to operate in a safe direction while putting less load on the battery during an emergency.
- Options for encoders: SIN/COS encoder Endat feedback options are available. Default incremental encoder.
Specifications:
- Power: 5.5 kW.
- Voltage Input: 3 phase 380 - 480V AC (-15% to +10%) 50 - 60 Hz (±5%).
- Voltage Output: 3 phase 380 - 480V.
- Rated Output Current: 12A.
- Overload capacity: 150% / 1 minute.
- Output Frequency: 0 – 400 Hz.
- Operating temperature: -10 °C to +40 °.
- LCD Keypad.
- IP20.
- Dimensions: 200 x 355 x 202 mm [W x H x D].
- Weight: 7.7kg.
- BRAKE CHOPPER.
- HIGH PERFORMANCE VECTOR CONTROL - close loop vector.
| SKU | LV0055iV5L-4CNNN |
|---|---|
| Brand | LS Electric |
