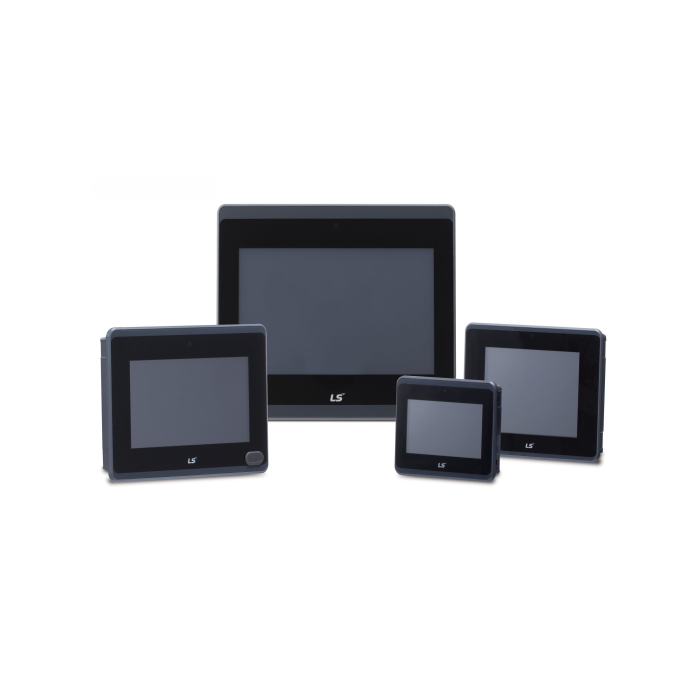

XGT Panel 5.6" TFT LCD 18-bit Color 24V DC 1 Channel
Features:
- There is a vertical mounting option.
- Configuring the XP-builder: (COMMON) (Setting for a Project Property)
- The XGT Panel can show PDF files.
- In the event of an alarm, the troubleshooting content for the alarm can be seen on location as a PDF file.
- A PDF viewing object can be used to view PDF files on an FTP server.
- An entity with the ability to connect to an FTP server and download a given file is called an FTP client.
- A PDF viewer object can be used to view PDF files on an FTP server.
- With VNC Viewer, a PC or HMI can be remotely monitored.
- Via XP-Manager, download the VNC server to the HMI.
- Install a Universe VNC server (such as Real VNC, Ultra VNC, etc.) on your computer.
- To the project screen, add the VNC Viewer object.
Specifications:
- Display Type: TFT color LCD.
- Screen size: 14.2 cm (5.6”)
- Display resolution: 640 x 480 pixels.
- Colour Indication: 18-Bit colour (65.536)
- Indication degree: left/right: 60 deg, Upper: 40 deg, Lower: 60 deg.
- Blacklight: LED type (Supports Blacklight Auto-off function)
- Blacklight duration: 20,00 hours
- Touch panel: 4-wire Resistive, analogue.
- Audio output: Magnetic buzzer (85dB)
- Process: 800MHz
- Memory: Drawing: 64MB, Operating RAM: 512MB, Backup RAM: 128KB
- Ethernet: 1 channel, IEEE802.1a, 10Base-TX
- USB device: 1 channel, USB 2.0 Device (for download and upload project)
- Multi-language
- GIF format is available.
- Certifications: CE, UL (Cul), UL type 4X, KC
- Protection: IP65
- Dimension (mm): 165 x 132.5 x 36.1.
- Panel cut (mm): 156 x 123.5.
- Rated Voltage: DC 24V
- Power consumption(W): 5.5
| Brand | LS Electric |
|---|
