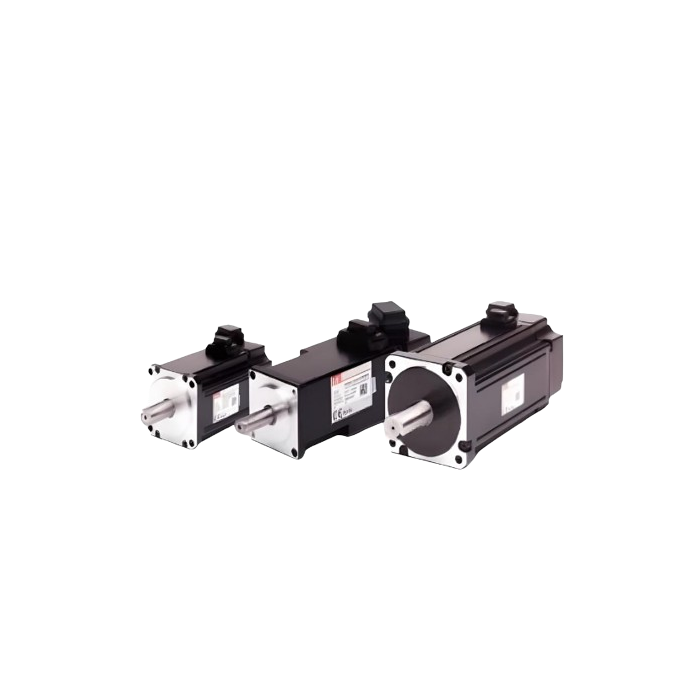

5.0kW 400V 3000 Rpm 19 Bit S-Turn Serial 180 mm Flange
Ether CAT:
- Provides real-time control with high speed, synchronization, and capability.
- Application of 16-bit-bus results in faster communication.
- Improved chip communication speed.
- Increased speed of Ether CAT communication.
- Supports FoE, EoE, and CoE.
- Enhanced frequency of speed response (1 kHz).
The variable switching frequency:
- 16/32/48 kHz.
Programming function with a module for single-axis position:
- Pulse-input positioning control mode.
- Supports indexing.
- Without the need for a position control module, provides position control via I/O or HMI.
Specifications:
- Model name: Servo motor.
- Motor shaft: Flat shaft
- Flange size: 180mm flange.
- Input power supply: 400VAC.
- Motor capacity: 5.0kW.
- Rated speed: 3000rpm
- Encoder type: 19bit s-turn abs (16bit turn abs)
- Shape of shaft end: One side round key (standard).
- In the case of 40, 60, 80 flange products, you can apply 200V drive only.
- 16-bit M-turn Abs. (with battery)
- Keyed Shaft, No Brake.
| Brand | LS Electric |
|---|
