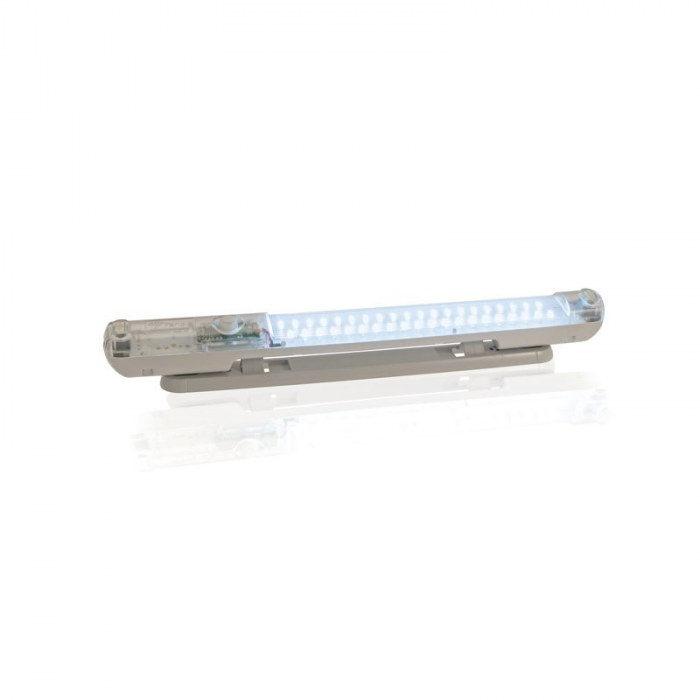

5 WATT LED PANEL LAMP + INFRARED SENSOR
Panel lights from Fandis FLL series:
- It is imperative that operators have adequate lighting during switchboard maintenance and inspections so they can see the components inside the panel properly.
- LED technology offers electrical cabinets an efficient lighting solution with a notably low power consumption.
- The lamp's slimline design ensures safety and increases installation adaptability, making it perfect for use in confined locations.
Features:
- Rotates to six distinct positions on the base (maximum of 40°)
- Magnetic attaching for easy mounting on metallic surfaces (with optional magnet set)
- 120° radius with delayed auto off with no detected presence
- Termination is accomplished by push-in cage clamp terminals on both sides with an integrated release button.
- Switching is accomplished via a mounted switch or version with a PIR sensor that detects motion within.
Specifications:
- SERIES: FLL series
- POWER (W): 5
- DESCRIPTION: LED panel lamp with infrared sensor
- OPERATING VOLTAGE: 110/230 VAC
- OPERATING TEMPERATURE: -30 to 60°C
- LIFETIME: 160.000h at 25°C
- LED: 290 Lm, 120°, daylight, colour temperature 6500K
- INFRARED SENSOR: Yes
- DIMENSIONS (MM): (H) 32 x (W) 356 x (D) 46
Brand | Fandis |
---|
