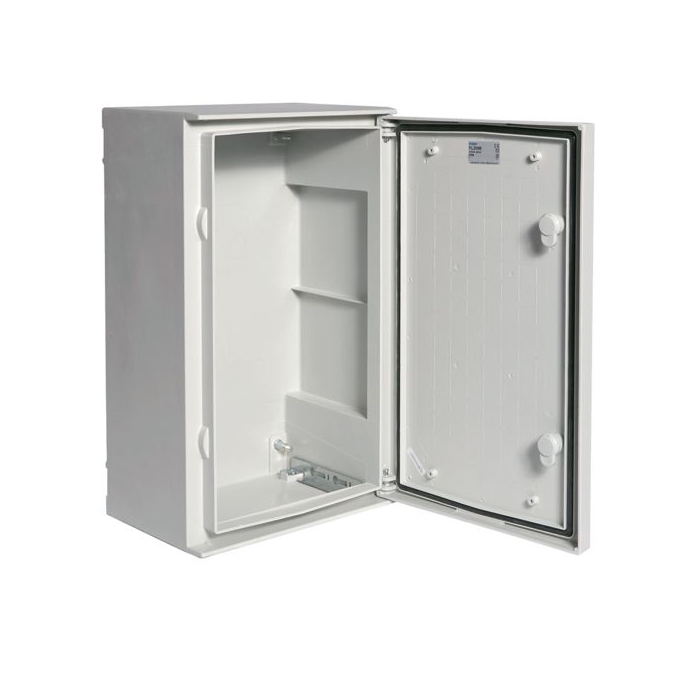

500x300x200 IP65 POLYESTER ENCL.
Description:
- The IP65 POLYESTER ENCLOSURE FL209B, measuring 500x300x200, is made to provide strong protection for electrical components in challenging conditions.
- This enclosure is appropriate for both indoor and outdoor use and is a member of the Orion.Plus series.
- It is constructed of glass-reinforced polyester, which offers exceptional durability and resilience to environmental elements, and has a simple door.
Specifications:
- Series: Orion.Plus.
- Dimensions:
- Height: 500 mm.
- Width: 300 mm.
- Depth: 200 mm.
- Material: Glass-reinforced polyester.
- Colour: Light grey (RAL 7035).
- Mounting: Wall mounting.
- Protection Class: Insulation class II.
- Ingress Protection: IP65.
- Impact Resistance: IK10.
- Rated Current: 630 A.
- Number of Modules: 36.
- Number of Rows: 3.
- Door Type: Plain door with lock (male triangular wrench).
- Number of Keys: 2.
- Suitable for Outdoor Use: Yes.
- Compliance:
- BS EN 62208.
- RoHS conforms.
- Features:
- Design that is sturdy and compact.
- Strong resilience against collisions from machines.
- Outstanding defence against moisture and dust.
- Ideal for hostile surroundings.
- Simple wall installation.
- This enclosure offers a safe and sturdy home, which is ideal for guaranteeing the longevity and safety of your electrical systems.
| Brand | :hager |
|---|
