500x400x200 POLY. ENC T/PARENT

ZAR 4,562.65
Out of stock
SKU
FL213BT

Description:

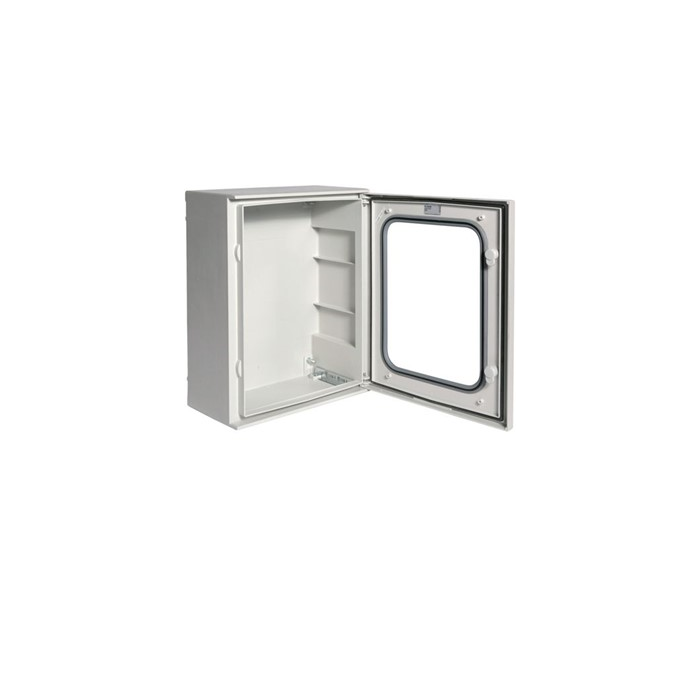

  • The IP65 POLYESTER ENCLOSURE T/PARENT FL213BT, measuring 500x400x200, is made to provide strong protection for electrical components in challenging conditions.
  • This enclosure is appropriate for both indoor and outdoor use and is a member of the Orion.Plus series.
  • Its transparent door makes it simple to examine the parts that are encased without having to open the door.

Specifications:

  • Series: Orion.Plus.
  • Dimensions:
    • Height: 500 mm.
    • Width: 400 mm.
    • Depth: 200 mm.
  • Material: Glass-reinforced polyester.
  • Colour: Light grey (RAL 7035).
  • Mounting: Wall mounting.
  • Protection Class: Insulation class II.
  • Ingress Protection: IP65.
  • Impact Resistance: IK10.
  • Rated Current: 630 A.
  • Number of Modules: 54.
  • Number of Rows: 3.
  • Door Type: Transparent door with lock (male triangular wrench).
  • Number of Keys: 2.
  • Suitable for Outdoor Use: Yes.
  • Compliance:
    • BS EN 62208.
    • RoHS conforms.
  • Features:
    • Design that is sturdy and compact.
    • Strong resilience against collisions from machines.
    • Outstanding defence against moisture and dust.
    • Ideal for hostile surroundings.
    • Simple wall installation.
    • Translucent door for simple examination.
    • This enclosure offers a safe and sturdy home, which is ideal for guaranteeing the longevity and safety of your electrical systems.
More Information
Brand :hager
