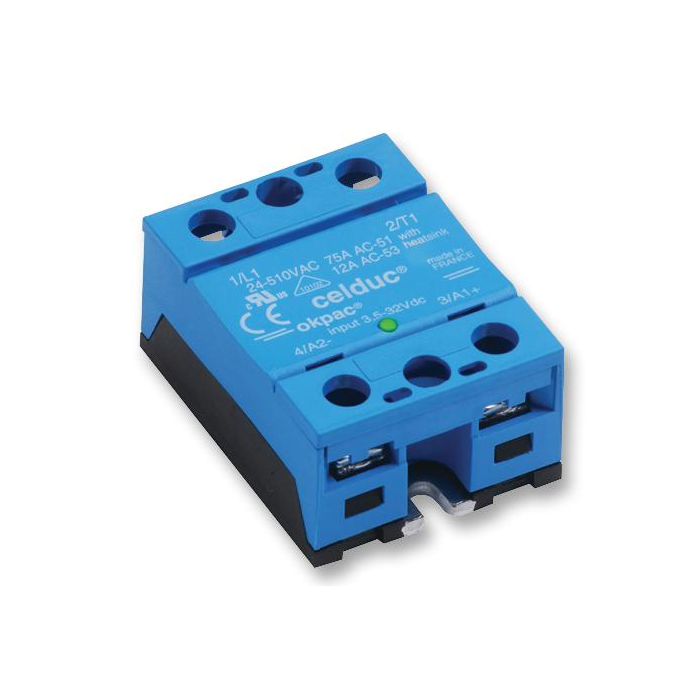

50A 24-510VAC 1200V SS RELAY
Solid state relays (SSR):
- With an extremely long lifespan and back-to-back thyristors, all Celduc SSRs (solid state relays) use 4th generation TMS2 technology.
General Features:
- LED status control.
- Input current that is regulated.
- EMC appropriate for an industrial setting.
- SO8 range for infrared and most other load types.
- Voltage protection for both the output and the transil (VDR).
- Zero-cross switching at a low zero-crossing voltage of less than 12V.
- As per IEC/EN 61000-4-4 (bursts) and IEC/EN 61000-4-5 (spikes), extremely high immunity.
Specifications:
- SERIES: SO8
- SWITCHING CURRENT: 50A
- SWITCHING VOLTAGE; 24 - 510 VAC
- PEAK VOLTAGE: 1200V
- CONTROL VOLTAGE: 3.5 - 32 VDC
- DESCRIPTION: Zero-cross for most loads
- INDEX PROTECTION IP: IP20
- DIMENSIONS (MM): (H) 59.4 x (W) 45 x (D) 30
| Brand | Celduc relais |
|---|
