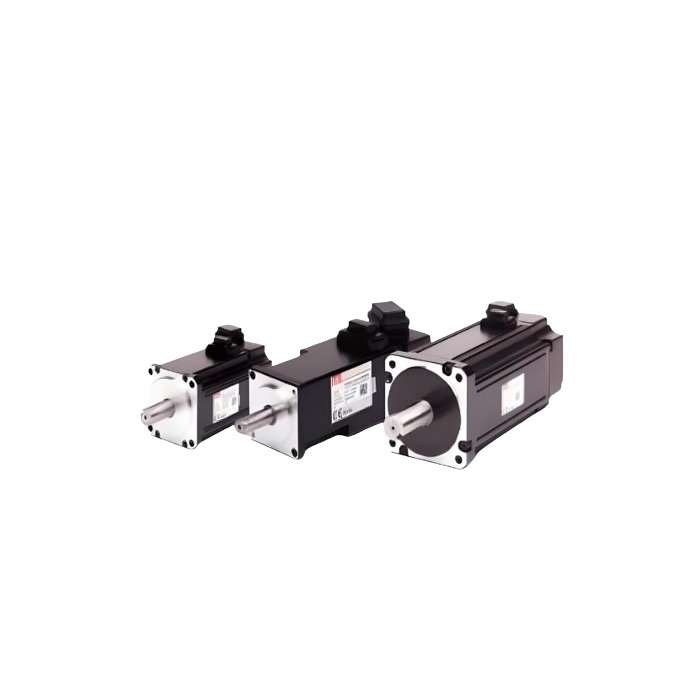

50W 3000 RPM M8 16 Bit S-Turn Serial 40mm Flange
Pricing available on request
Ether CAT:
- Provides real-time control with high speed, synchronization, and capability.
- Application of 16-bit-bus results in faster communication.
- Improved chip communication speed.
- Increased speed of Ether CAT communication.
- Supports FoE, EoE, and CoE.
- Enhanced frequency of speed response (1 kHz).
Features:
- The variable switching frequency: 16/32/48 kHz.
- Programming function with a module for single-axis position:
- Pulse-input positioning control mode.
- Supports indexing.
- Without the need for a position control module, provides position control via I/O or HMI.
Specifications:
- Model name: Servo motor.
- Motor shaft: Flat shaft.
- Flange size: 40mm flange.
- Input power supply: 200VAC.
- Motor capacity: 50W.
- Rated speed: 3000rpm.
- Encoder type: 18-bits-turn abs (FAL type), 16bit m-turn abs.
- Shape of shaft end: Straight.
- In the case of 40, 60, 80 flange products, you can apply 200V drive only.
- Rated/Max torque: 0.32/0.96[Nm.]
- 18-bit Abs. (with Battery).
- 8mm Keyed Shaft No Brake.
| SKU | APMC-FALR5AM8N |
|---|---|
| Brand | LS Electric |
