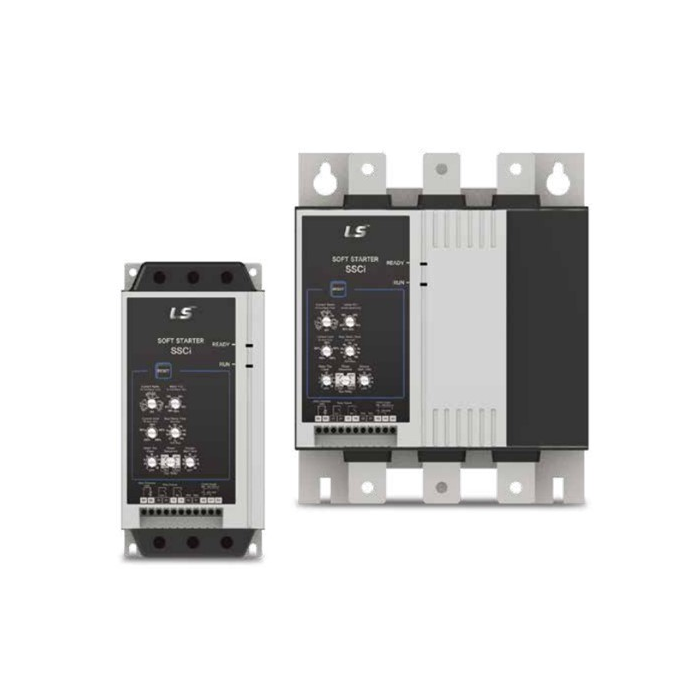

55 kW 100A FLC Basic Type Motor Protection Bypass 200 - 575VAC 24VAC/DC
Description:
- A soft starter is a practical and affordable way to ensure the motor runs steadily.
- With LS's vast experience and knowledge, we offer a solution to raise operating efficiency and reduce energy costs.
Features:
- Ultra compact design (Built-in bypass)
- IEC/UL/KC Standards
- Built-in motor protection
- Allows for fast diagnosis of a trip via two LEDs.
- Simple panel configuration & cost-saving
- Easy operation & control
Specifications:
- Power 55kW
- Current 100A (4xFLC,6s)
- Voltage 200~575V
- Phase controlled 2 phases.
- Control voltage 24 VAC/VDC
- Size: 193 × 215 × 145 mm
- Standard
- Analog Ctrl
- 100A FLC
- Built-in Bypass Contactor
- Analog Settings
- With Motor Protection
Brand | LS Electric |
---|
