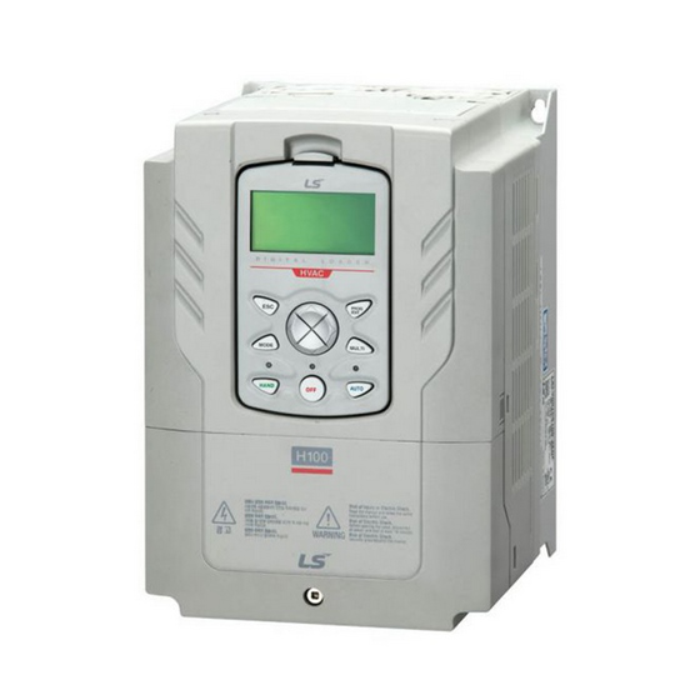

H100 Fan And Pump Drive 55kW 3-Ph 380VAC DC Reactor C3 EMC HVAC Funct. RTC RS-485 (BACnet)
Description:
- The LS Electrical H100 Fan and Pump Drive series is designed for high-performance and energy-efficient operation in HVAC and water treatment systems.
- These drives support three-phase input voltages of 200-240V and 380-480V, with power ratings ranging from 0.75kW to 500kW.
- The H100 series features a user-friendly keypad, built-in EMC filter, and multiple communication options including Modbus-RTU and BACnet MS/TP.
- It also offers advanced functions such as fire mode, multi-motor control, and energy-saving capabilities.
- The compact design allows for side-by-side installation, making it ideal for space-constrained environments.
- With its robust performance and reliability, the H100 series is a versatile solution for various fan and pump applications.
Specifications:
- Series: H100
- Input Range VAC: 380 to 480 Volts AC
- Input Phase: 3
- HP: 75 Horsepower
- Amps: 107 Amps
- Operator Controls: Built In
- Mounting: DIN Rail
- Dimension (H x W x D): 12.8 in x 20.1 in x 11.2 in
- Input voltage: 3-phase 380~480VAC (-15%~+10%)
- Output voltage: 3-phase 380~480V.
- Rated power: 55 kW/75hp
- Output power: 82.0 kVA.
- Rated input current: 100.1 A
- Rated output current: 107 A
- Keypad: LCD keypad
- UL type: UL Open
- EMC filter: EMC integrated.
- Reactor: DC integrated
- Control method: V/F control, slip compensation.
| Brand | LS Electric |
|---|
