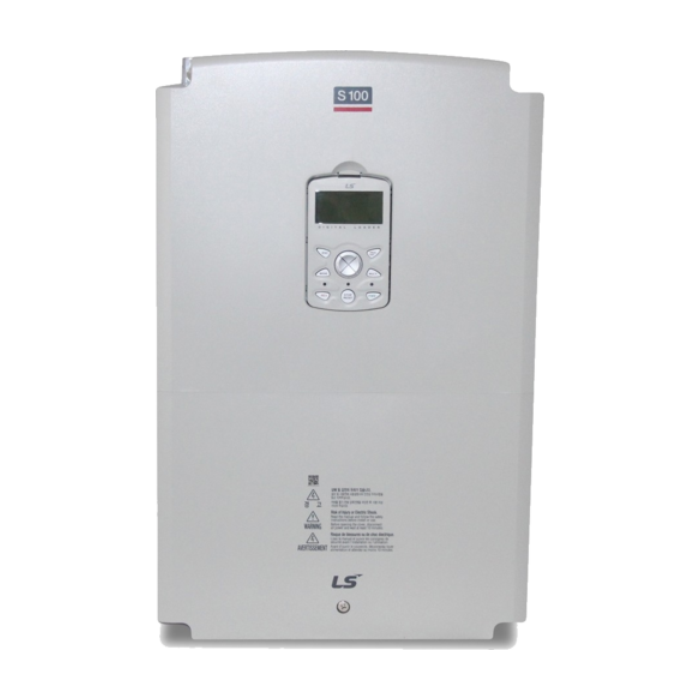

55kW 3 Phase 380-480V AC Built-in EMC Filter DC Reactor
Description:
- Series S100 Standard AC Drive.
- S100's smart copier enhances user convenience.
- When using the smart copier, there is no need to power the drive.
- There are different combinations of function blocks.
- Safe torque off (STO) is built in.
- redundant circuit for the input.
- Control functions without sensors.
- torque during startup (200%/0.5Hz).
- various field networks.
- Installed side by side.
- Decreased dimensions.
- The EMC filter is built in.
- Simple PLC sequences can be controlled with A single keypad may monitor and operate multiple drives. (RS485 wiring is necessary.)
- International standards
- Redundant input circuit
Specifications:
- Supply voltage: 3 Phase 380VAC.
- Output Type: Digital Programmable Relay (NO)
- Output Type: Analogue DC 0~10V /4~20mA /0~20mA.
- Output Type: Digital Programmable Transistor
- Output Type: Digital Programmable Relay (NO/NC)
- Other Feature: Internal DC Reactor
- Display Type: LCD
- Input Type: 7 Pieces Prog. PNP/NPN
- Input Type: Analogue DC 0~10V /4~20mA /0~20mA.
- Input Type: Analogue DC 0~10V.
- Strength: 55 kW
- Input Voltage Range: 380V - 480V.
- Wattage: 55kW - 75kW
Brand | LS Electric |
---|
