5kW 400V Servo Positioning / Indexing Universal Enc RS-422 (Modbus)

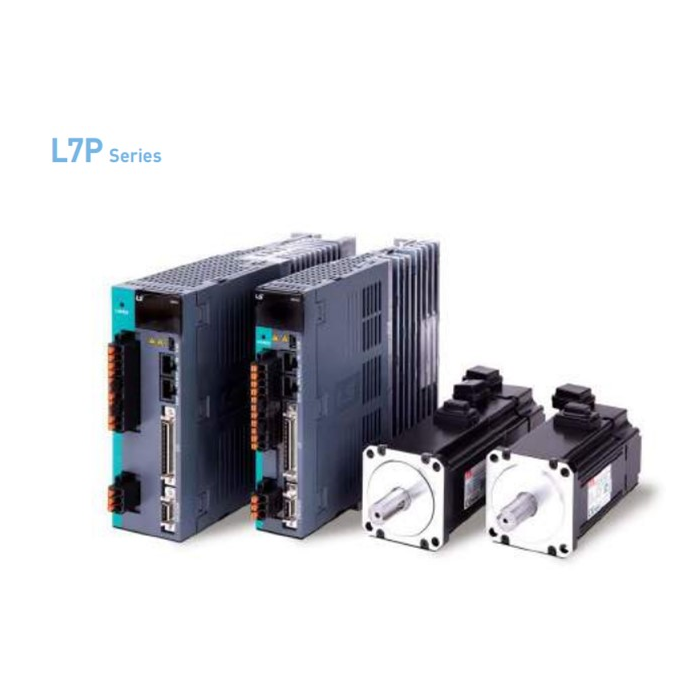

L7P Series:
- Supplying a single-axis position determination module with a built-in program function.
- Supporting pulse input for position control mode.
- Mode of position control.
- Useful even without an upper controller.
- Protocol for Modbus RTU (RS-422).
- Support a range of encoder drives and motors.
- Supporting motor drive (supporting third-party motors) and rotary DD.
- In quadrature, BiSS-C Tamagawa Endat 2.0 Serial Abs.
- Enhanced Performance of Control
- A higher control bandwidth.
- Offering a 4-phase notch filter.
- Real-time FET control of vibration.
- Real-time function for adjusting gain.
Specifications:
- Power: 5.0 kW
- Input Supply Voltage: 3 Phase 380 ~ 480 V AC (-15% ~ +10%) 50 ~ 60[Hz]
- Control Supply Voltage: 1 Phase 380 ~ 480 V AC (-15% ~ +10%) 50 ~ 60[Hz]
- Size: 250 x 130.4 x 200 [mm]
- Protection class: IP20
- Main input power supply: 3 phase AC200~230(V) (-15~+10%), 50~60(Hz).
- Control input power supply: Single phase AC200~230(V) (-15~+10%), 50~60(Hz).
- Rated current: 17.5A.
- Peak current: 47.25A
- Encoder type: Universal encoder feedback Quadrature (incremental), BiSS-B, BiSS-C (absolute, incremental), Tamagawa serial (absolute, incremental), EnDat 2.2 Sinusoidal Analog Hall.
- Speed control range: Max. 1:5000
- Frequency response: Max. 1(kHz) or above (when using 19bit serial encoder).
- Input frequency: 1 (Mpps), line drive/ 200 (kpps), open collector.
- Analog input: total 2 channels, Analog speed override and torque command input: -10(V)~+10(V).
- Analog output: Total 2 channels, 15 function inputs can be selectively allocated.
- Operating temperature: 0~50°C / -20~70°C
- Operating humidity: below 80%RH/ below 90% RH (avoid dew-condensation)
- Environment: Indoor, avoid corrosive, inflammable gas or liquid and electrically conductive dust.
| Brand | LS Electric |
|---|
