5kW Servo 230V Ethercat 2 x Enc.Closed-Loop Univ. Enc Cia402 Profile

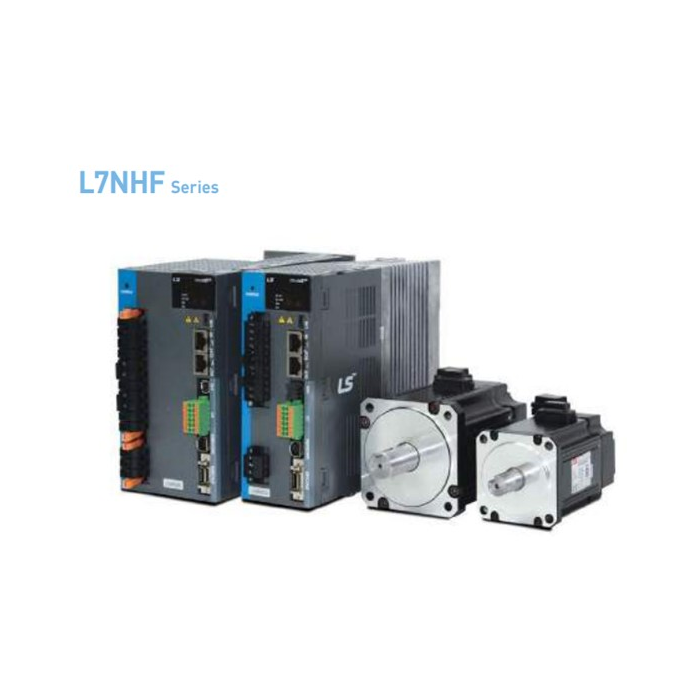

L7NHF Series:
- Control in real time using Ether CAT.
- Fast synchronization method and real-time capability.
- Supporting FoE, EoE, and CoE.
- Better Frequency Response (1 kHz) for Speed.
- Faster communication because of the use of 16-bit buses.
- Increased speed of chip communication.
- Increased speed of Ether CAT connectivity.
- Complete closed loop control.
- Select from dual feedback control, fully closed loop control, and semi-closed loop control.
- Quick response is possible with both internal and external encoder position values when using fully closed-loop control.
- High precision control is made possible throughout machine operation with fully closed-loop control.
Specifications:
- 5kW Servo 230V
- Ether cat
- 2 x Encoder.
- Closed-Loop
- Universal Encoder
- Cia402 Profile
- Main input power supply: 3 phase AC 380~480(V) (-15~+10%), 50~60(Hz).
- Control input power supply: Single phase AC 380~480(V) (-15~+10%), 50~60(Hz).
- Rated current: 32A.
- Peak current: 90.88A
- Encoder A type: Quadrature (incremental), Biss-B, Biss-C (absolute, incremental), Tamagawa serial (absolute, incremental), EnDat 2.2, Sinusoidal, Analog Hall.
- Encoder B type: Quadrature (incremental), SSI Sinusoidal, Analog Hall (Analog to BiSS converter)
- Speed control range: max. 1:5000.
- Frequency response: max. 1 kHz or above (when the 19-bit serial encoder is applied)
- Safety function: 2 Input channels (STO1, STO2)
- Operating temperature: 0~50°C/ -20~70°C
- Operating humidity: below 80% RH / Below 90% RH (avoid dew-condensation)
- Environment: Indoor, avoid corrosive, inflammable gas or liquid and electrically conductive dust.
| Brand | LS Electric |
|---|
