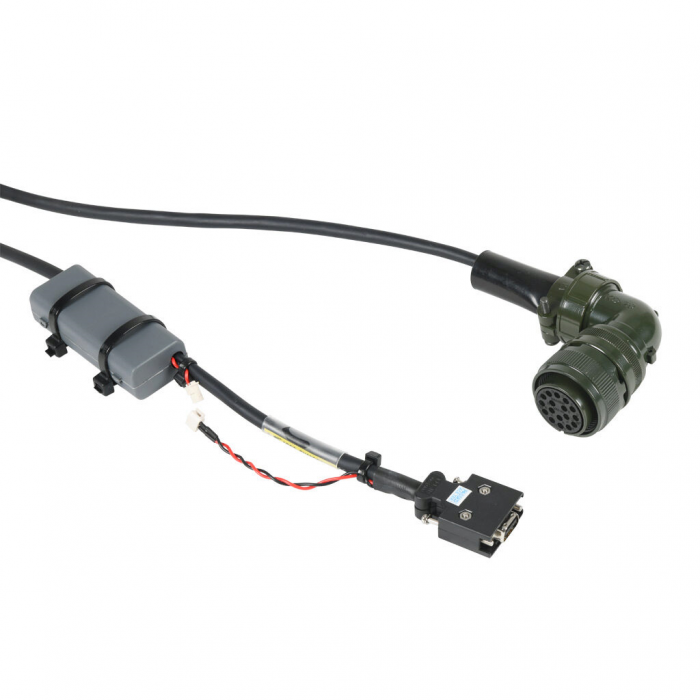

5m M-Turn Abs Enc + Battery 130 - 180 Frame APM(C)- FE; FF; FG; HE + FEP; FFP; FGP
Pricing available on request
Specifications:
- Series: L7 Series 200V.
- Cable type: Encoder cable.
- Non-Moving type.
- Cable length: 5m.
- Cables for 130 - 180 APM(C) F Motors, 19 Bit M-Turn Abs. Encoders and Battery.
- Motor side connector (MS: Military Standard): Plug spec - MS3108B20-29S.
- Drive side connector (CN2):
- Case spec: 10314-52A0-008 (M3) or SM-14J (sun tone).
- Connector spec: 10114-3000VE (3M) or SM-14J (Sun tone)
- Cable spec: 4P x 0.2SQ or 4P x 24AWG.
- Battery connector: 5267-02A (MOLEX).
| SKU | APCS-EN05DS1 |
|---|---|
| Brand | LS Electric |
