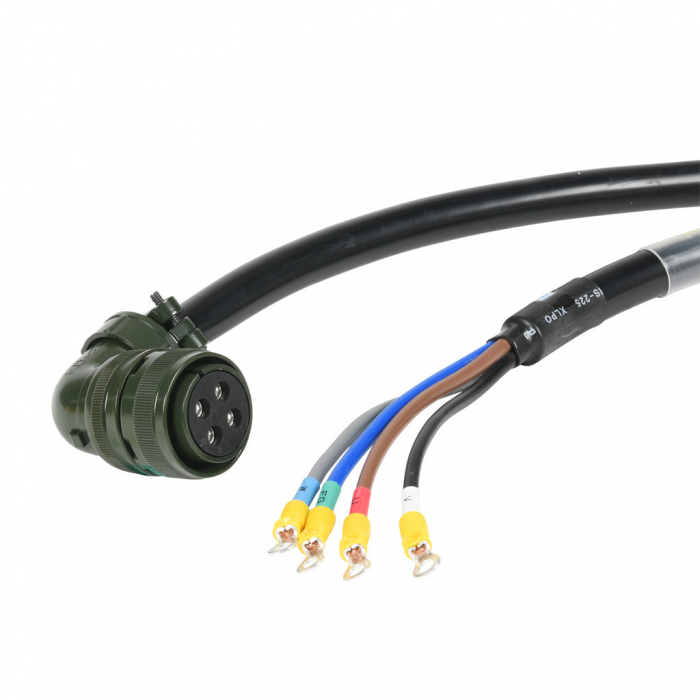

5m Robotic Power large capacity 180/220 Frame SF SG FF FG - 200V motors

ZAR 4,390.00
Out of stock
SKU
APCS-PF05JS

Specifications:

  • Series: L7 Series 200V.
  • Cable type: Power cable.
  • Moving type.
  • Cable length: 5m
  • Motor Power Cables 180/220 Frame 4.4 - 7.5kW S / F 200V motors.

Motor side connector:

  • Plug spec: MS3108A22-22S (MS).

Drive side connector:

  • Connecting terminal spec: 6.0 x 5 (Ring terminal).

Brake power side connector:

  • Connecting terminal spec: 1.5 x 3 (Ring terminal).
  • Cable spec: 2C x 0.75SQ or 2C x 18AWG.
More Information
Brand LS Electric
