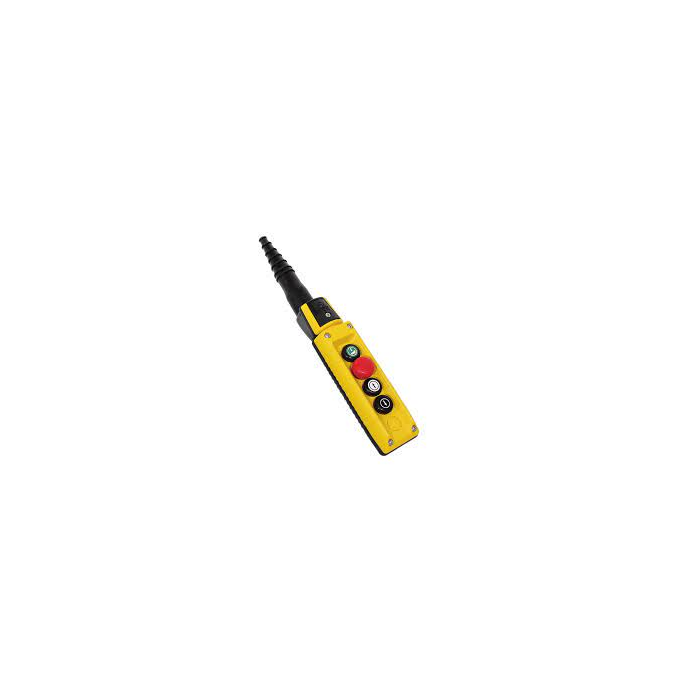

6 WAY MIKE PENDANT STATION: 1 SPEED BUTTON 1 NO: 2. 2 SPEED BUTTON 1 NO + 1 NO: 2

ZAR 3,271.19
Out of stock
SKU
F70EY120202-2

Specifications:

  • SERIES: MIKE series
  • NO OF WAYS: 6 way
  • DESCRIPTION: Single row pendant station
  • INDEX PROTECTION IP: IP66 / IP67 / IP69K
  • OPERATIONAL TEMPERATURE: -40°C - +80°C
  • MECHANICAL LIFE: 1 x 10⁶ operations
  • RESET/ALARM 2 NO: 1
  • MUSHROOM E/STOP 1 NC: 1
  • 1 SPEED BUTTON 1 NO: 2
  • 2 SPEED BUTTON 1 NO + 1 NO: 2
  • STANDARDS OF COMFORMITY: IEC/EN 60204-1, 60947-1, 60947-5-1, 60529, EN418

MIKE pendant control units:

  • Heavy-duty applications are the focus of MIKE pendant stations.
  • The molded two-color button discs provide permanent, readable lettering and symbols, and the mounted rubber pushbuttons ensure complete dust protection.
  • The redesigned ergonomic shape, design, and compact proportions of the case, which include antislip grooves, reduce fatigue while boosting comfort of use in any working environment.
  • The unique hanging system with cables hidden within the housing shell and the separation of the actuators (mounted on the top cover) from the contact blocks (attached to the base along with the cable entrance) optimize wiring and maintenance.

Important components:

  • Materials are resistant to weather, providing assurance against dust and water infiltration.
  • On the front or bottom base of the pendant station, an additional actuator with up to three connections can be installed.

Extra charges may apply; standard items can be replaced by:

  • 1/2 SPD double depression 2 speed button and contact instead of 1 speed.
  • 1/2 MSRM double depression 2 speed button and contact instead of mushroom + reset.
  • 1/1 MSRM single depression 1 speed button and contact instead of mushroom + reset.
More Information
Brand TER
