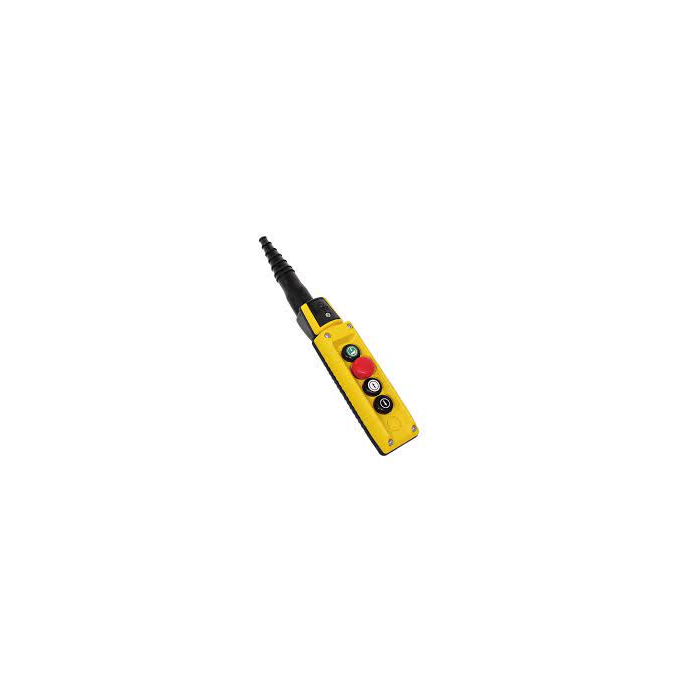

6 WAY MIKE PENDANT STATION: 1 SPEED BUTTON 1 NO: 4. 2 SPEED BUTTON 1 NO + 1 NO: 0

ZAR 2,869.32
Out of stock
SKU
F70EY120400-1

Specifications:

  • SERIES: MIKE series
  • NO OF WAYS: 6 way
  • DESCRIPTION: Single row pendant station
  • INDEX PROTECTION IP: IP66 / IP67 / IP69K
  • OPERATIONAL TEMPERATURE: -40°C - +80°C
  • MECHANICAL LIFE: 1 x 10⁶ operations
  • RESET/ALARM 2 NO: 1
  • MUSHROOM E/STOP 1 NC: 1
  • 1 SPEED BUTTON 1 NO: 4
  • 2 SPEED BUTTON 1 NO + 1 NO: 0
  • STANDARDS OF COMFORMITY: IEC/EN 60204-1, 60947-1, 60947-5-1, 60529, EN418

MIKE pendant control units:

  • Heavy-duty applications are the focus of MIKE pendant stations.
  • The molded two-color button discs provide permanent, readable lettering and symbols, and the mounted rubber pushbuttons ensure complete dust protection.
  • The redesigned ergonomic shape, design, and compact dimensions, which include antislip grooves on the case, decrease fatigue and improve comfort of use in any working environment.
  • The unique hanging system with cables hidden within the housing shell and the separation of the actuators (mounted on the top cover) from the contact blocks (attached to the base along with the cable entrance) optimize wiring and maintenance.

Important characteristics:

  • Materials that withstand the weather and provide assurance against dust and water infiltration
  • An additional actuator (front or bottom base) with up to three connections can be attached to the pendant station.

Extra charges are available on request. Typical elements can be changed by:

  • 1/2 SPD double depression 2 speed button and contact instead of 1 speed.
  • 1/2 MSRM double depression 2 speed button and contact instead of mushroom + reset.
  • 1/1 MSRM single depression 1 speed button and contact instead of mushroom + reset.
More Information
Brand TER
