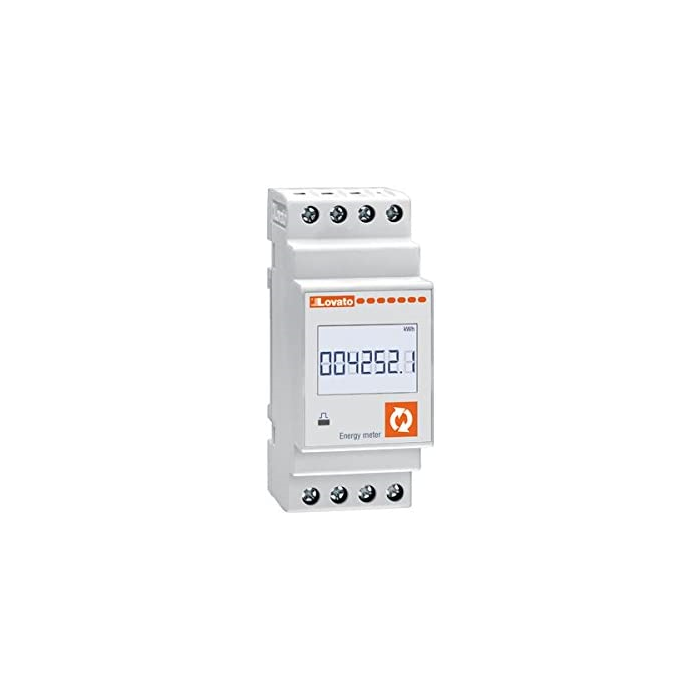

Energy meters (kWh meters):

• Energy meters are digital instruments for the measurement of electrical energy consumption in single and three phase systems with direct connection or via current transformer (CT).
• Digital meters with LCD screen
• Active energy: Class 1 (IEC/EN 62053-21)
• Reactive energy: Class 2 (IEC/EN 62053-23)
• Rated supply voltage: 220 - 240 VAC +15...-20%
• Single phase direct connection 40/63A (modular design DIN rail mountable)
• Multi-measurements: Total and partial active, reactive energy, active, reactive power, voltage, current and power factor.
