650x500x250 POLY. ENC T/PARENT
Description:

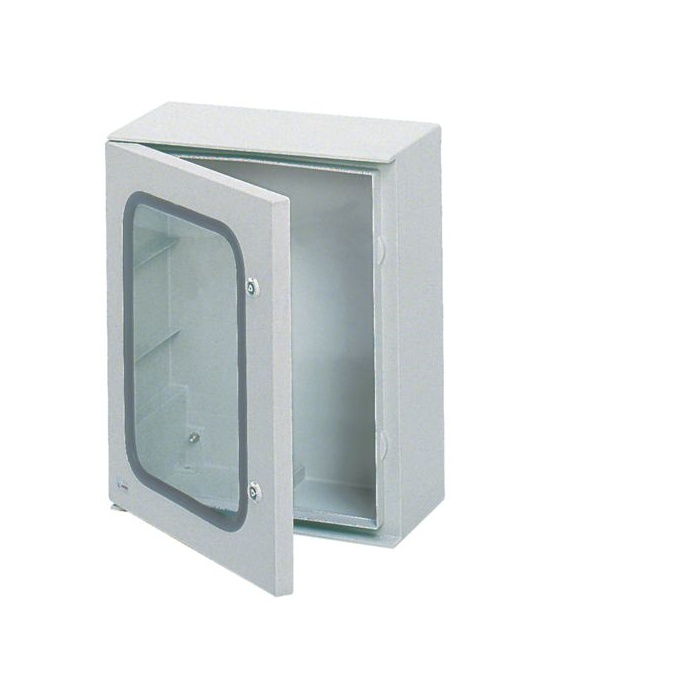

- Built to withstand tough conditions, the Hager 650x500x250 IP65 POLYESTER ENCLOSURE T/PARENT FL221BT is intended to provide reliable protection for electrical components.
- This enclosure is appropriate for both indoor and outdoor use and is a member of the Orion.Plus series.
- Its transparent door makes it simple to examine the parts that are encased without having to open the door.
Specifications:
- Series: Orion.Plus.
- Dimensions:
- Height: 650 mm.
- Width: 500 mm.
- Depth: 250 mm.
- Material: Glass-reinforced polyester.
- Colour: Light grey (RAL 7035).
- Mounting: Wall mounting.
- Protection Class: Insulation class II.
- Ingress Protection: IP65.
- Impact Resistance: IK10.
- Rated Current: 630 A.
- Number of Modules: 96.
- Number of Rows: 4.
- Door Type: Transparent door with lock (male triangular wrench).
- Number of Keys: 2.
- Suitable for Outdoor Use: Yes.
- Compliance:
- BS EN 62208.
- RoHS conforms.
- Features:
- Design that is sturdy and compact.
- Strong resilience against collisions from machines.
- Outstanding defence against moisture and dust.
- Ideal for hostile surroundings.
- Simple wall installation.
- Translucent door for simple examination.
- This enclosure offers a safe and sturdy home, which is ideal for guaranteeing the longevity and safety of your electrical systems.
