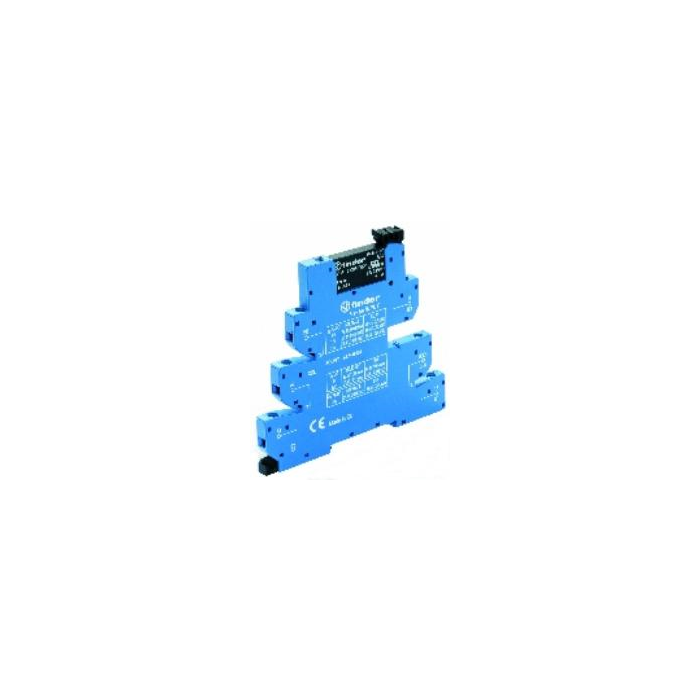

6A 1 CHANGEOVER SLIM RELAY INTERFACE 230VAC,
Modules for relay interfaces:
- 39 series slimline Master Interfaces modules.
- Compact 6.2 mm in width.
- Easy ejection clip and secure relay retention Integrated LED coil protection and signalling circuit.
- 16-way jumper link connections (bridging bars).
Relay interface module Master INPUT:
- Using jumper connectors, supply voltage distribution is quick and simple.
- Allows input device termination in its entirety (no extra terminals needed).
- Gold-plated output connections provide enhanced suitability for low-power PLC inputs.
- Interface between PLCs/controllers and sensors, limit switches, and auxiliary connections.
SERIES 39:
- DESCRIPTION: Relay interface module
- RELAY TYPE: Electromechanical relays.
- CURRENT: 6A
- CONTACT CONFIGURATON: 1 changeover.
- MOUNTING: DIN 35 rail mounting (EN60715)
- OPERATING VOLTAGE: 230 VACS
- DIMENSIONS (MM): 90.7 x 6.2 x 94.3
| Brand | Finder |
|---|
