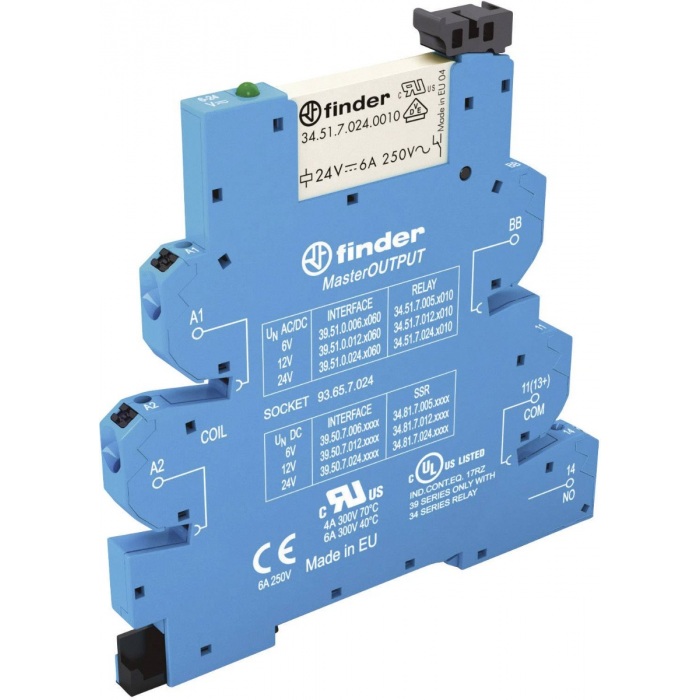

6A 1CO SLIM REL INT/FACE 24VAC/DC
Modules for relay interfaces:
- 39 series slimline Master Interfaces modules.
- Compact 6.2 mm in width.
- Easy ejection clip and secure relay retention Integrated LED coil protection and signalling circuit.
- 16-way jumper link connections (bridging bars).
Relay interface module Master OUTPUT:
- Rapid and simple supply voltage distribution using jumper links Interface between PLCs and controllers and output devices, motors, valves, etc.
SERIES 39:
- DESCRIPTION: Push-in relay interface module
- RELAY TYPE: Electromechanical relays.
- CURRENT: 6A
- CONTACT CONFIGURATON: 1 NO
- MOUNTING: DIN 35 rail mounting (EN60715)
- OPERATING VOLTAGE: 24 VAC/DC
- DIMENSIONS (MM): 90.7 x 6.2 x 94.3
| Brand | Finder |
|---|
