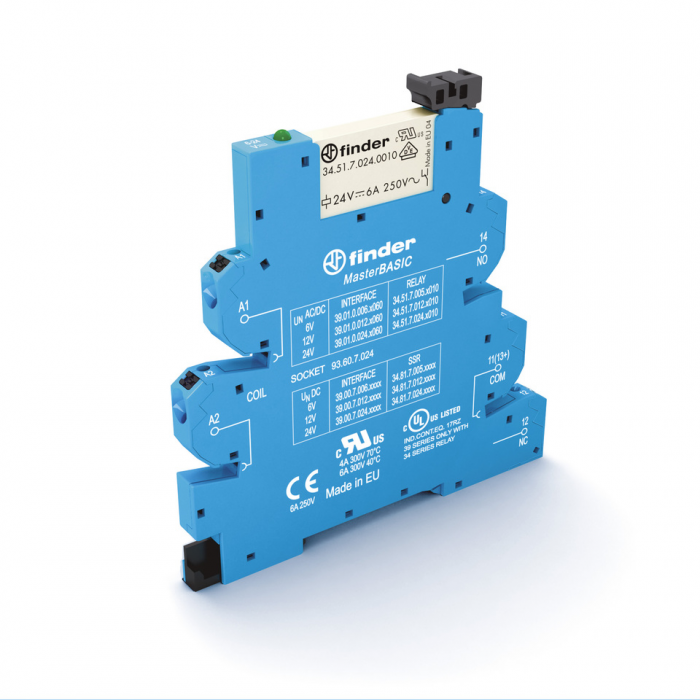

6A 1NO SLIM SS REL INT/FACE 24VDC
Modules for relay interfaces:
- 39 series slimline Master Interfaces modules.
- Compact 6.2 mm in width.
- Easy ejection clip and secure relay retention Integrated LED coil protection and signalling circuit.
- 16-way jumper link connections (bridging bars).
Interface modules for Master PLUS relays:
- All-purpose interface suitable for any kind of application.
- With an optional 16-way jumper link, a common connection is possible (term A1, A2, 11).
- Accepts output fuse module (09363) for simple and compact output circuit protection.
SERIES 39:
- DESCRIPTION: Push-in relay interface module
- RELAY TYPE: Push-in solid state relays.
- CURRENT: 6A
- CONTACT CONFIGURATON: 1 NO
- MOUNTING: DIN 35 rail mounting (EN60715)
- SWITCHING VOLTAGE: 1.5...33 DC
- OPERATING VOLTAGE: 24 VDC
- DIMENSIONS (MM): 90.7 x 6.2 x 94.3
| Brand | Finder |
|---|
