6x 24V DC In 4x PNP Out RS-232 loader 1x Ch RS-232C or RS-485 HSC 1x Opt
Description:

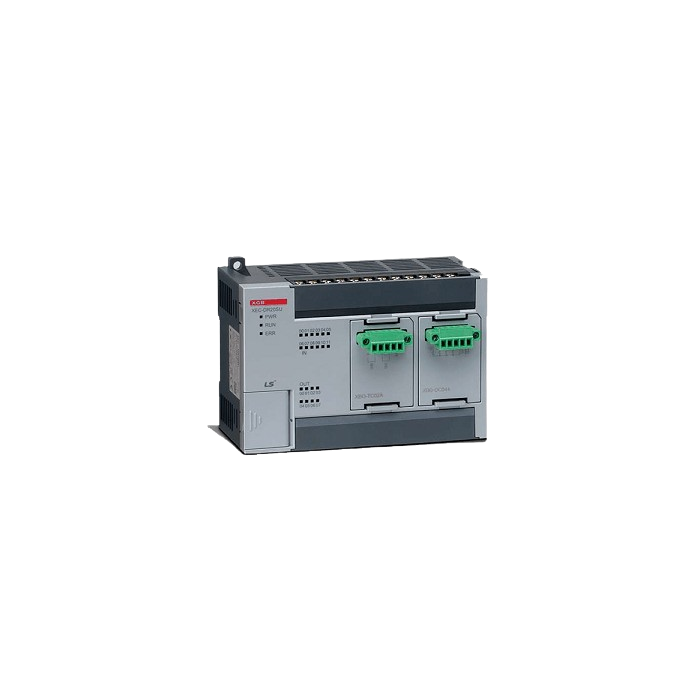

- The micro-PLC that provides maximal automation at the lowest possible cost is the XGB series.
- With its excellent functionality and performance, it can handle tasks ranging from easy control to difficult ones.
- XGB has a user-friendly interface along with multiple network monitoring and diagnosis features, as well as a backup function.
Integrated programming environment
- Improved user interface with XG-PD and XG5000
- Several types of monitoring.
- Monitoring and diagnostics of networks.
Optimum communication environment
- Strong communication: integrated RS-232C/485, two communication expansions, Ethernet, and Cnet I/F network configuration
Specifications:
- Supply Voltage: 100-240V AC.
- Program Capacity: 15k steps.
- Relay Output Rating: 2A Resistive.
- Max. I/O Points: 384
- Input-, Output Resolution: 14-Bit
- PID Control
- High Speed Inputs
- Positioning
- Size: 100 x 64 x 90 mm
- XBC Economic E-Type Unit
- 110/240VAC Input Power
- 6 x 24VDC Digital Inputs
- 4 Transistor Outputs (sink)
- 1 Option slot
- XBC Non-IEC (Master-K Type) PLCs, E / SU / H & XBM Versions
- XBC-E Economic PLC (Master-K), 100-240V AC, 240 n/s Step, XBO Expansion Options Only
Key benefits:
- Compact
- Cost-effective
- LADDER and IEC-1131 programmable.
- From 38 to 284 I/O points
- From 94 ns/step to 240 ns/step
- From 4 to 200 K steps
| Brand | LS Electric |
|---|
