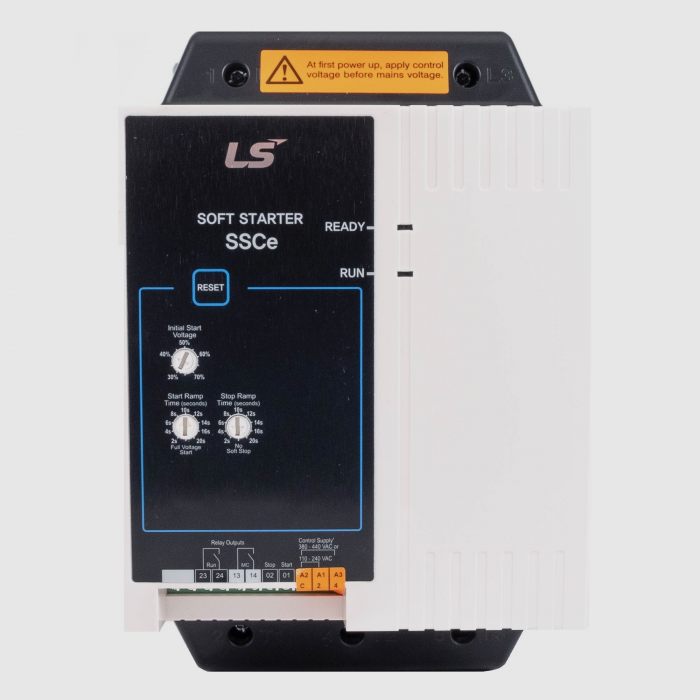

7.5 kW 18A FLC Basic Economic Built-in Bypass 200 - 440VAC Supply 110-440V

ZAR 0.00 ZAR 0.00
Out of stock
SKU
SSCe-018-V4-C1-18A

Pricing available on request

Description:

  • A soft starter may provide steady motor performance and is a cost-effective and efficient solution.
  • With LS's broad knowledge and expertise, we offer a solution to improve operational effectiveness while reducing energy costs.

Specifications:

  • Normal duty: 7.5 kW 18A 400 VAC, Heavy duty: 7.5 kW 17A 400 VACS.
  • Main voltage: 110~240 VAC (+10/-15%) or 380~440 VAC (+10/-15%).
  • Rated Output Current: 18 A.
  • Control Voltage: 110~240 VAC (+10%/-15%).
  • Start current: 4 x Inom.
  • Start time: 1-20s (Adjustable).
  • Operating temperature: -10°C to +60°C.
  • Protection class: IP20.
  • Built-in bypass.
  • Without Motor Protection.
  • AC53b 4-6:594.
  • <1000m 40℃.
  • Size: 98 x 201 x 165 mm (W x H x D).
  • Weight: 2.1 kg.

Features:

  • Ultra compact design (Built-in bypass).
  • IEC/UL/KC Standards.
  • Easy operation & control.
  • Allows for fast diagnosis of a trip via two LEDs.
  • Suitable for mounting in a switchboard.
